Smart Probe VAC Kit | Thermometer and Anemometer Kit

All prices are exclusive of GST

Part No.0563 0003 10

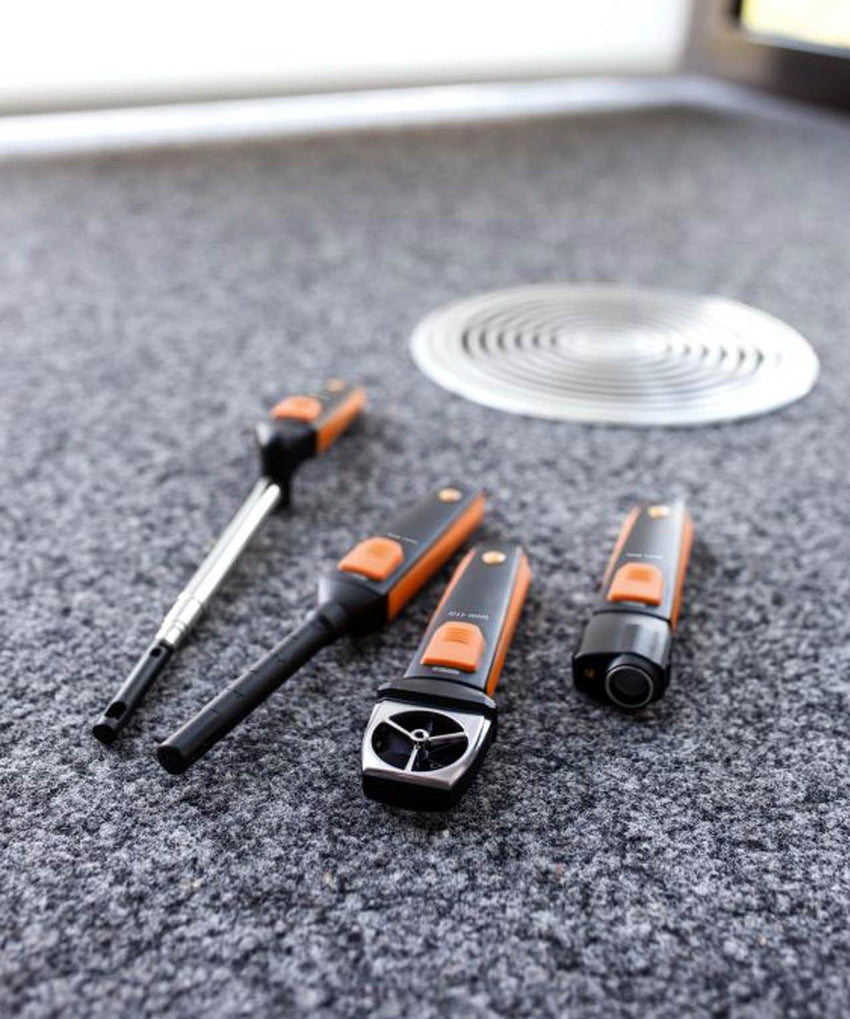

The compact Testo Smart Probes VAC set includes four measuring instruments that can be used with your smartphone/tablet for key measuring tasks carried out by VAC engineers:

• Testo 405i thermal anemometer.
• Testo 410i vane anemometer
• Testo 605i thermohygrometer - with new bendable probe!
• Testo 805i infrared thermometer.

Key Features:

• Easy parametrization of the outlet/duct cross-section for measuring the volume flow
• List of multiple volume flows and calculation of the total volume flow (in the log)
• Identification of mould risk thanks to the combined utilization of Testo 605i and Testo 805i
• Rapid image documentation with IR temperature readings and measuring spot marking

With the Testo Smart Probes VAC set, you can check air velocities, humidity, volume flows and temperatures in, on and around air conditioning systems. The robust Testo Smart Case enables the measuring instruments to be conveniently transported and ensures that they are always to hand when needed.

Advantages of the Testo Smart Probes VAC set
The measuring instruments in the Testo Smart Probes VAC set can be connected quickly and easily to your smartphone or tablet via Bluetooth. You can therefore measure air velocities, humidity, volume flows and temperatures with intuitive ease using the Testo Smart Probes App. The measuring instruments are easy to transport in the handy Testo Smart Case and always to hand when needed.

Advantages and applications of the individual measuring instruments:

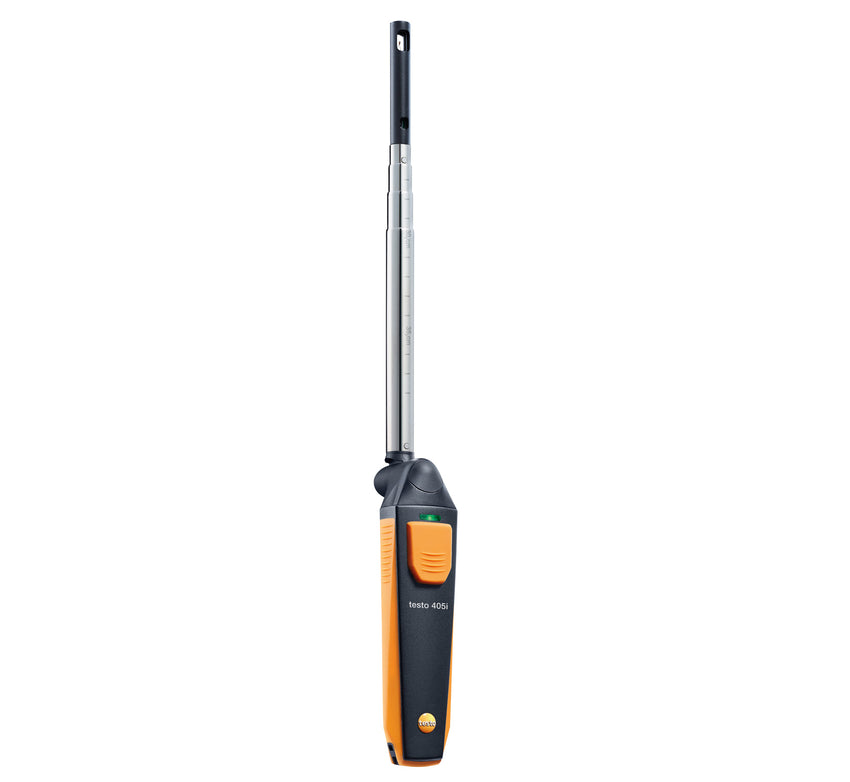

Testo 405i: thermal anemometer with smartphone operation
Measurement of air velocity, volume flow and temperature
Simple configuration of the dimension and geometry of the duct cross-section for measuring the volume flow
Telescopic tube which can be extended to 400 mm

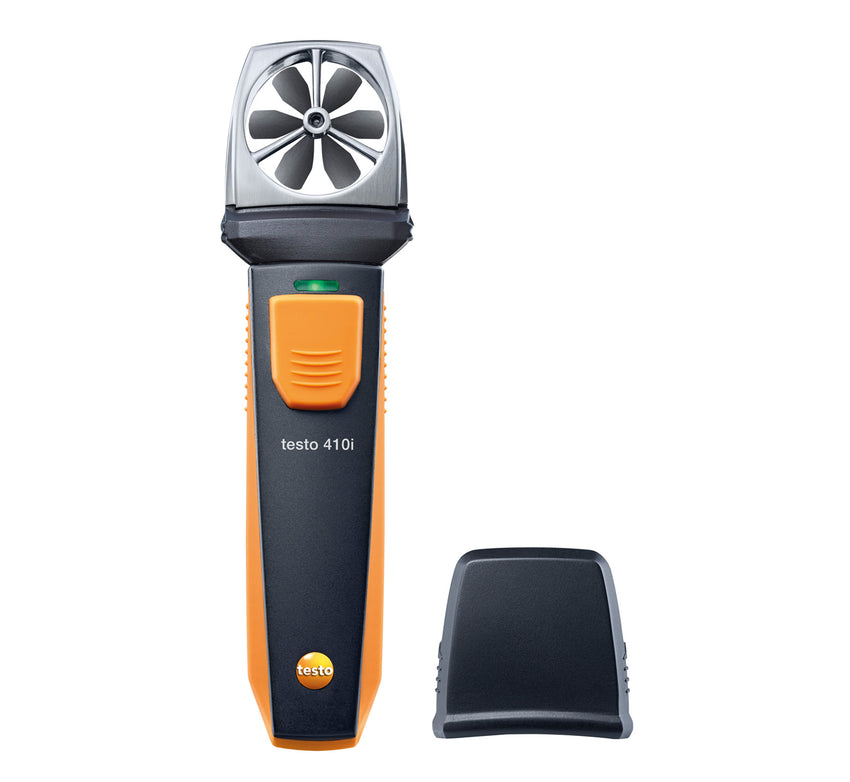

Testo 410i: vane anemometer with smartphone operation
Measurement of air velocity, volume flow and temperature
Display of the volume flow of multiple outlets in order to adjust systems
Easy parametrization of the outlet (dimension and geometry)

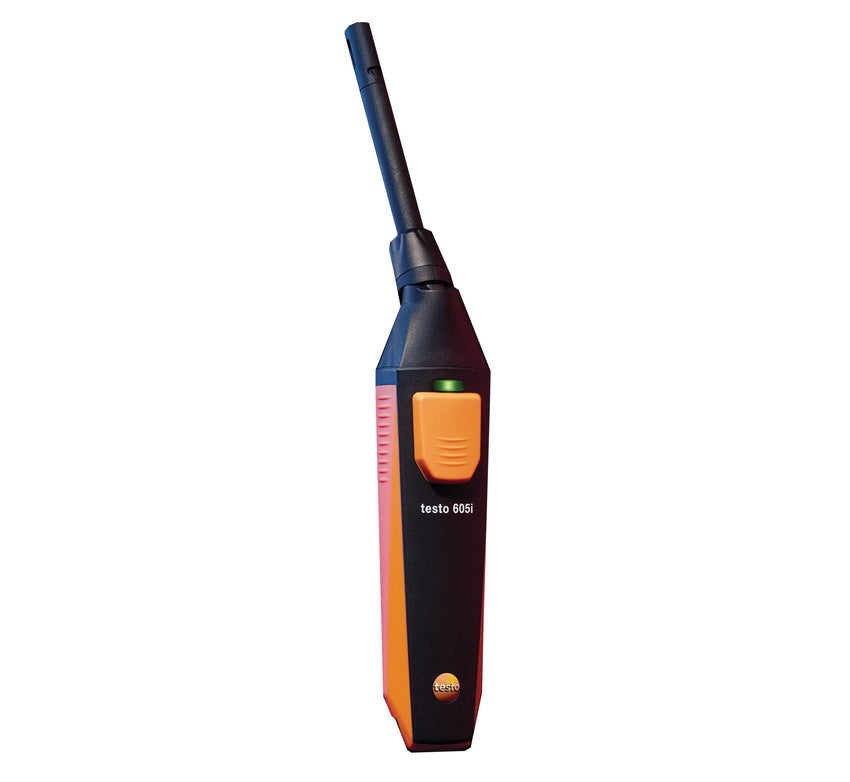

Testo 605i: Thermohygrometer with smartphone operation
Measurement of air humidity and temperature in rooms and ducts
Automatic calculation of the dew point and wet-bulb temperature

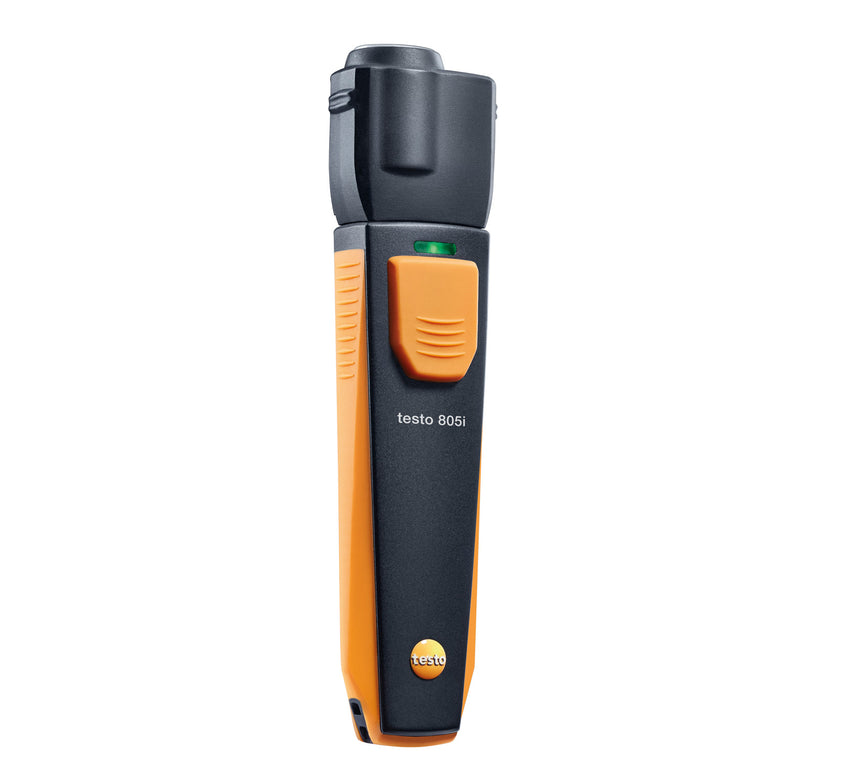

Testo 805i: infrared thermometer with smartphone operation
Non-contact infrared measurement of surface temperature
Measuring spot marking via highly visible 8-point laser circle
Easy selection of emission level via stored materials list
Image documentation with readings and measuring spot marking

Practical App with special functions for measurement data analysis on your smartphone or tablet
Measurement data is transmitted wirelessly from the relevant measuring instrument to the Testo Smart Probes App and can be viewed conveniently on mobile terminal devices – either as a chart or in table form. The App also offers practical functions such as timed and multi-point mean calculation, volume flow configuration, comparison of several volume flows at various outlets, automatic calculation of the dew point and wet-bulb temperature and identification of areas susceptible to mold via a clear traffic light system. The measurement data log can be emailed directly as a PDF or Excel file. This saves you time, allowing you to further increase your efficiency.

System requirements:

• iOS 8.3 or later
• Android 4.3 or later
• Bluetooth 4.0

Delivery Scope

• Testo 405i thermal anemometer with smartphone operation, including extendible (400 mm) telescope, batteries and calibration protocol.
• Testo 410i vane anemometer with smartphone operation, including protective cap, batteries and calibration protocol.
• Testo 605i thermohygrometer with smartphone operation, including batteries and calibration protocol.
• Testo 805i infrared thermometer with smartphone operation, including batteries and calibration protocol.

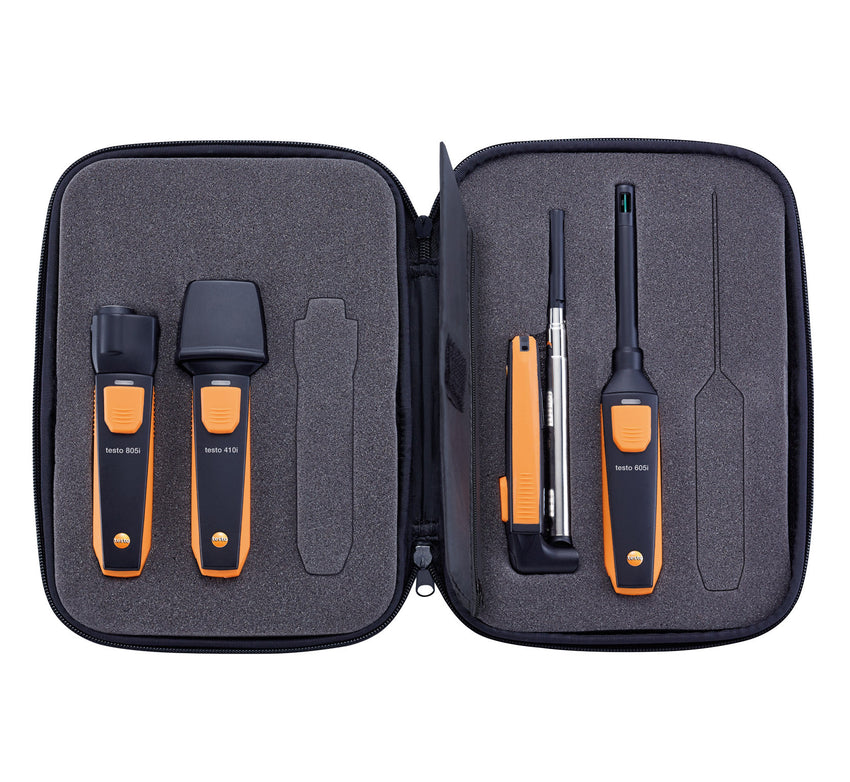

• Testo Smart Case “VAC”, including foam insert.

Temperature - NTC
Measuring range -20 to +60 °C (testo 405i + testo 410i + testo 605i)

Accuracy
±0.5 °C (testo 405i + testo 410i)
±0.8 °C (-20 to 0 °C) (testo 605i)
±0.5 °C (0 to +60 °C) (testo 605i)

Resolution 0.1 °C (testo 405i + testo 410i + testo 605i)

Temperature - Infrared
Measuring range -30 to +250 °C

Accuracy
±1.5 °C or ±1.5 % of mv (0 to +250 °C)
±2 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C)

Resolution 0.1 °C

Humidity - Capacitive
Measuring range 0 to 100 %RH
Accuracy 5 to 80 %RH: ±(1.8 %RH + 3 % of mv) at +25 °C
Resolution 0.1 %RH

Velocity - Hot wire
Measuring range 0 to 30 m/s

Accuracy
±(0.1 m/s + 5 % of mv) (0 to 2 m/s)
±(0.3 m/s + 5 % of mv) (2 to 15 m/s)

Resolution 0.01 m/s

General technical data
Dimensions
200 x 30 x 41 mm (testo 405i)
140 x 36 x 25 mm (testo 805i)
154 x 43 x 21 mm (testo 410i)
243 x 30 x 24 mm (testo 605i)

Operating temperature
-20 to +50 °C (testo 405i + testo 410i + testo 605i)
-10 to +50 °C (testo 805i)

System requirements requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Battery type 3 micro batteries AAA (per Smart Probe)
Battery life 15 h (testo 405i), 130 h (testo 410i), 150 h (testo 605i), 30 h (testo 805i)
Storage temperature -20 to +60 °C
Diameter vane 40 mm (testo 410i)
