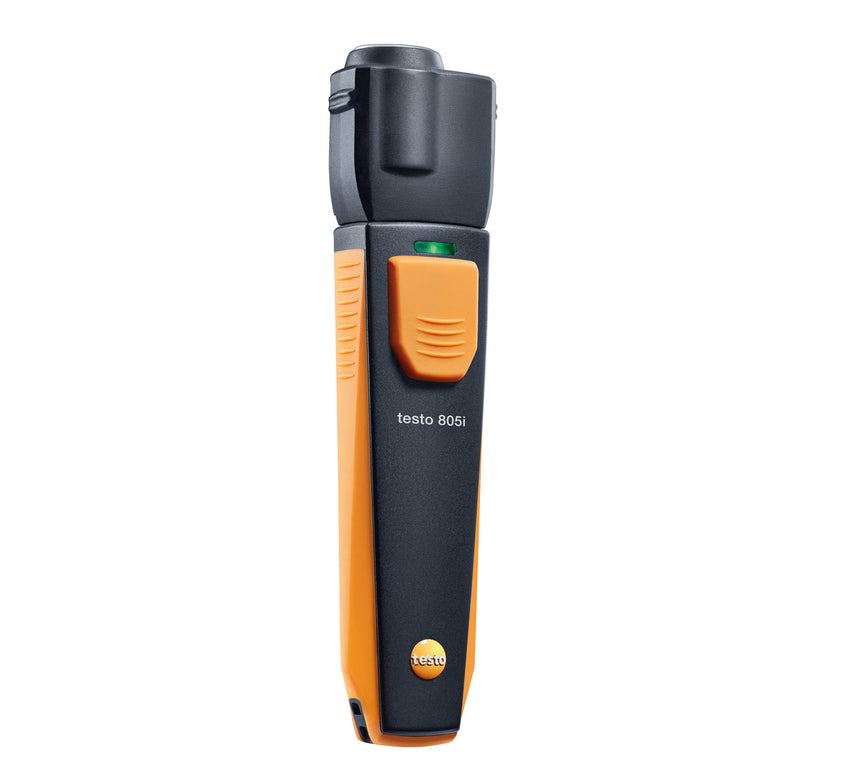

Infrared Thermometer with Smart App | Testo 805i

All prices are exclusive of GST

Part No. 0560 1805

• Non-contact infrared measurement of surface temperature
• Easy selection of emission level via stored materials list

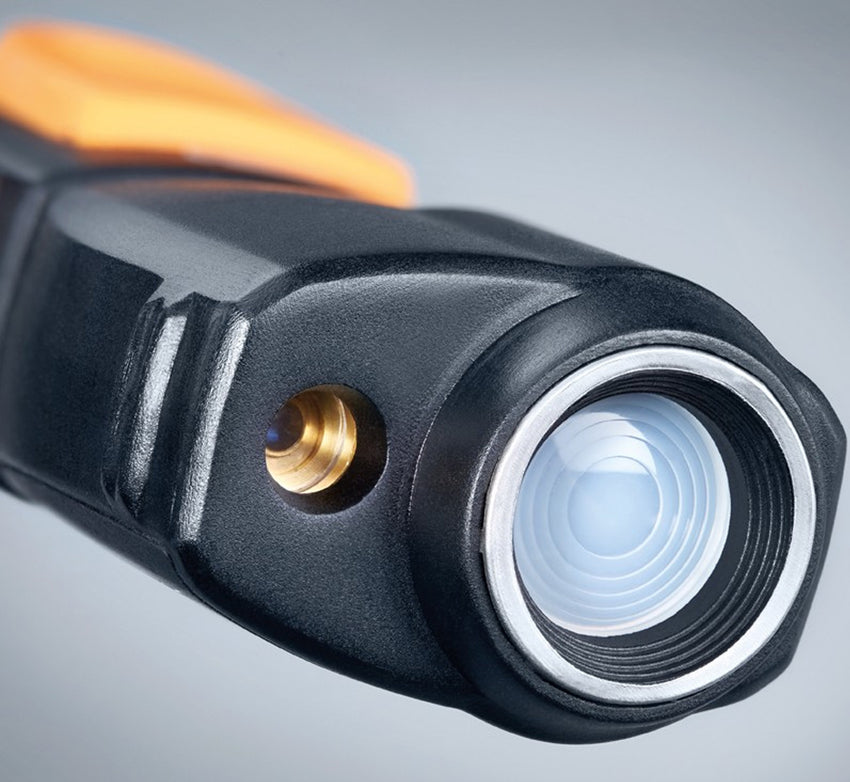

• Highly visible marking of the measuring spot thanks to 8-point laser
• Image documentation with readings and measuring spot marking

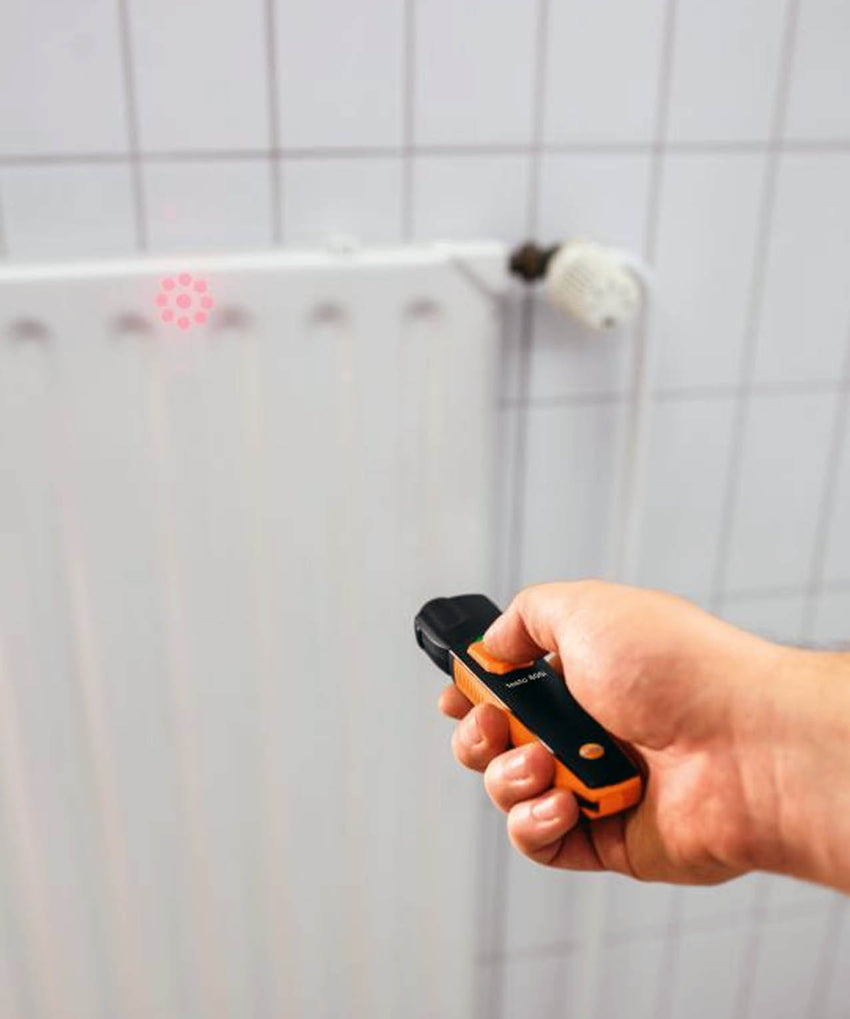

Carry out non-contact and App-controlled measurement of wall temperatures, as well as fuse and component temperatures in air conditioning systems: with the professional Testo 805i infrared thermometer with 8-point laser circle for highly visible measuring spot marking.

Product Description

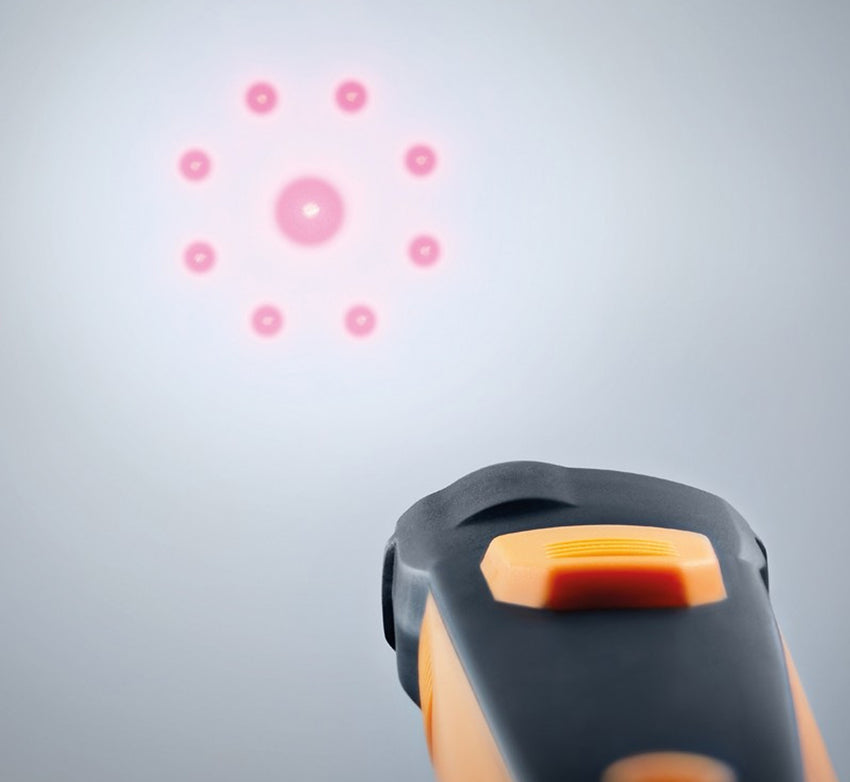

The Testo 805i infrared thermometer, in conjunction with a smartphone or tablet, functions as a compact IR thermometer for wall temperatures, as well as fuse and component temperatures in air conditioning systems. The measuring point is marked clearly with a laser circle made up of eight dots – so you always know precisely where to measure.

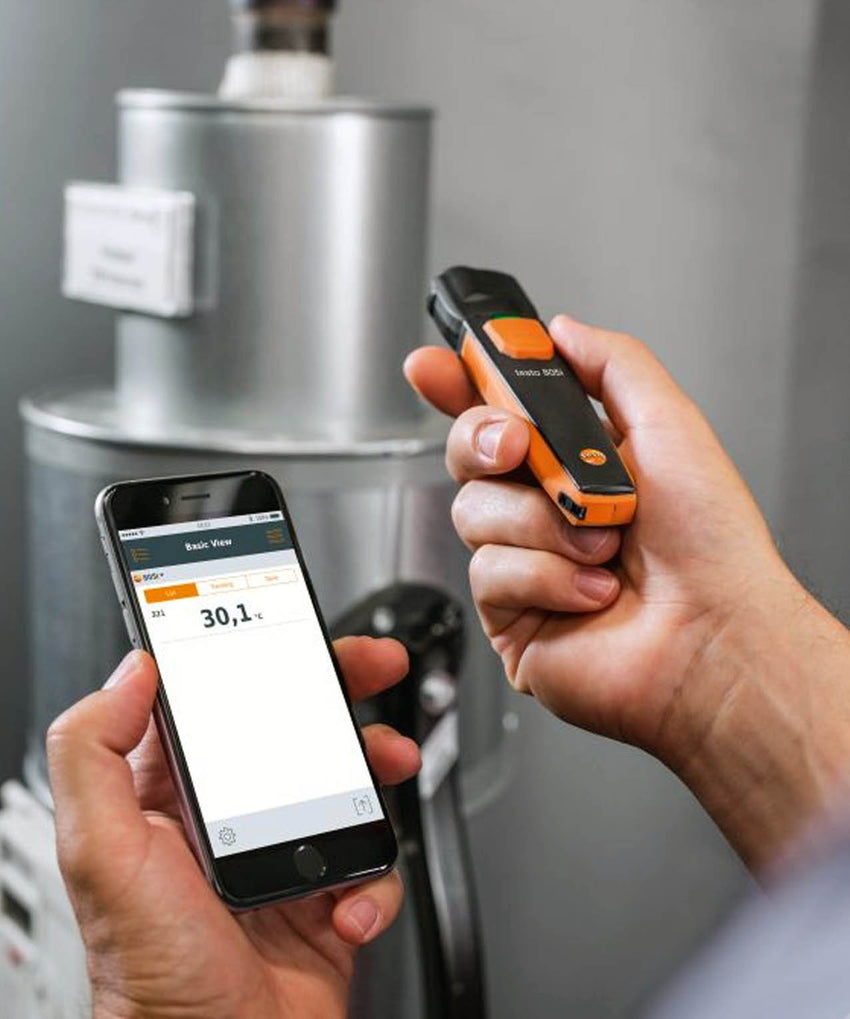

Documentation including images via App on a smartphone/tablet

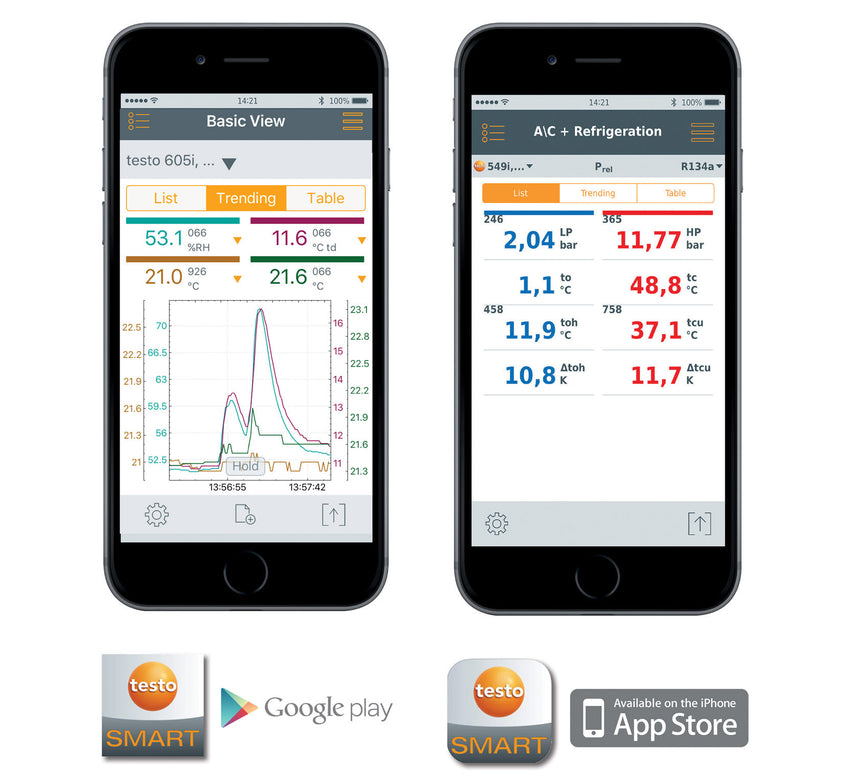

With the Testo Smart Probes App installed on a terminal device, users can view their readings conveniently. And that's not all: the App can also be used to create and document images, including temperature values and laser marking. A separate measurement menu makes it easier to detect areas that are susceptible to mould.
Particularly useful: a list containing the emission levels of certain materials is already stored in the App, so there's no longer any need to waste your time looking these up in tables. All measurement data is displayed either as a chart or in table form. The measurement data log can then be emailed directly as a PDF or Excel file.

System requirements:

• iOS 8.3 or later
• Android 4.3 or later
• Bluetooth 4.0

Delivery Scope
Testo 805i infrared thermometer with smartphone operation, including batteries and calibration protocol.

Temperature - Infrared
Measuring range -30 to +250 °C

Accuracy
±1.5 °C or ±1.5 % of mv (0 to +250 °C)
±2 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C)

Resolution 0.1 °C

General technical data
Dimensions 140 x 36 x 25 mm
Operating temperature -10 to +50 °C
System requirements requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Battery type 3 AAA micro batteries
Battery life 30 h
Storage temperature -20 to +60 °C

• Testo Smart Probes VAC set with smartphone operation
• Testo Smart Probes Heating set with smartphone operation

• Testo Smart Case “VAC” – storage case for Smart Probes measuring instruments

Product Brochures

• Product brochure Testo 805i (pdf)
• FAQ - Testo Smart Probes (application/pdf)

Manuals

• Instruction manual Testo Smart Probes (application/pdf)
• Testo Smart Probes startup instruction (application/pdf)
• Smart Probes compatibility(pdf)
