Vane Anemometer | Air Flow Measurement | Testo 410i

All prices are exclusive of GST

Part No. 0560.1410

• Measurement of air velocity, volume flow and temperature
• Display of the volume flow of multiple outlets in order to adjust systems
• Easy parametrization of the outlet (dimension and geometry)
• Convenient viewing of readings on a smartphone/tablet with the testo Smart Probes App

Professional measuring technology in a small format: the compact testo 410i vane anemometer with smartphone operation measures the volume flow, air velocity and temperature at air outlets quickly and reliably. The testo Smart Probes App enables readings to be viewed conveniently and offers intelligent additional functions.

Product Description

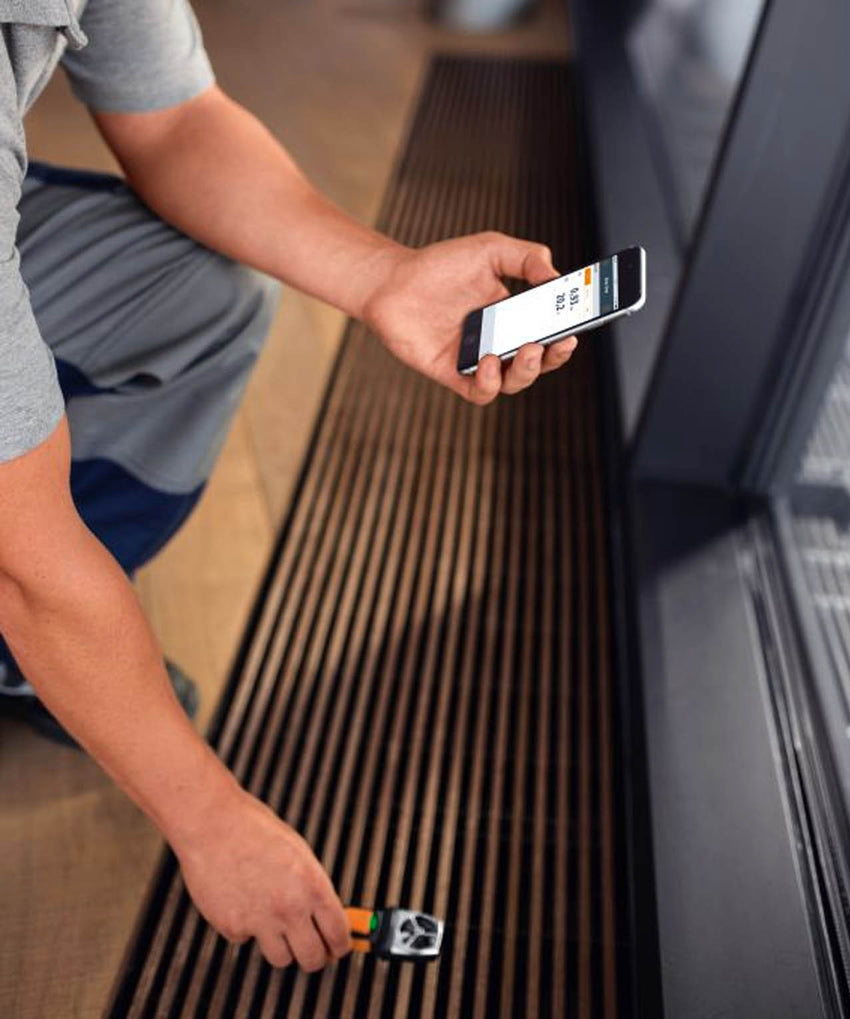

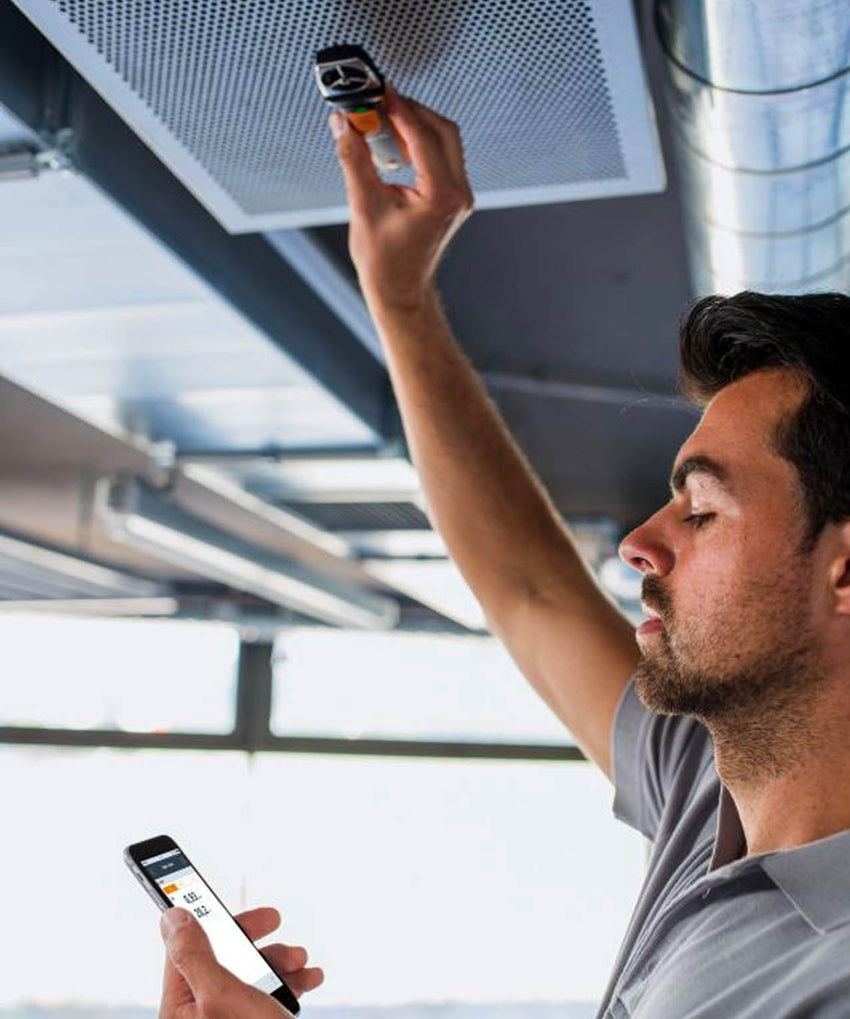

It fits perfectly into any shirt pocket: the Testo 410i vane anemometer is ideal for measuring air velocity and temperature at air outlets and ventilation grilles. Even measuring and adjusting the volume flow is easy. The Testo 410i gives you huge flexibility, so you can adapt to any unplanned measuring requirements in your everyday work.

Measuring convenience thanks to the App

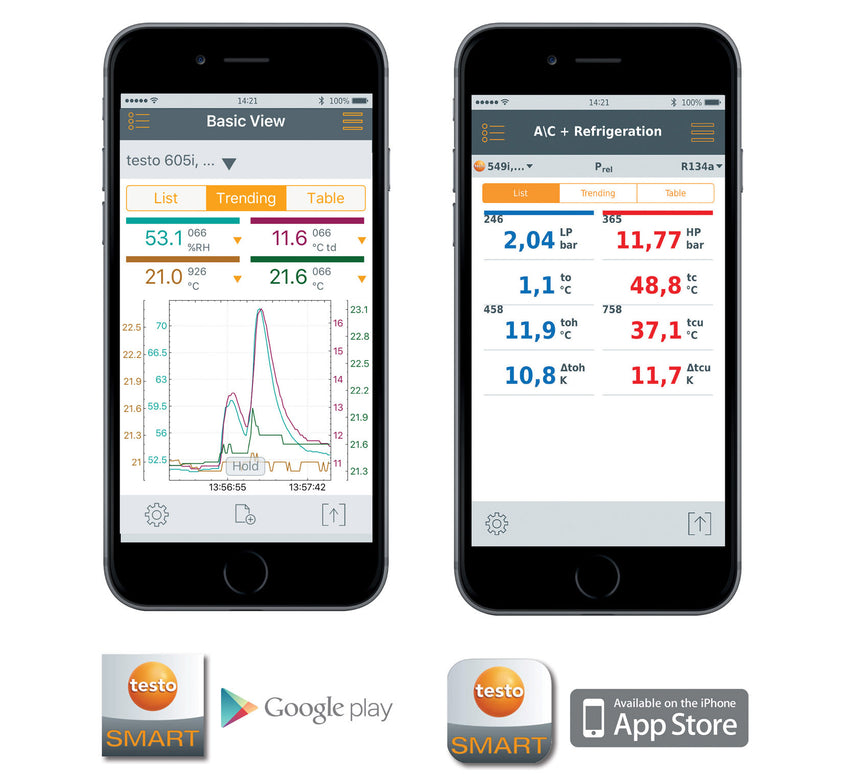

The Testo 410i combines professional Testo measuring technology with the efficient functions of an App. Your smartphone or tablet is used as a convenient display for your measuring values on site. You can view all measurement data via the Testo Smart Probes App, and email the log immediately as a PDF or Excel file.

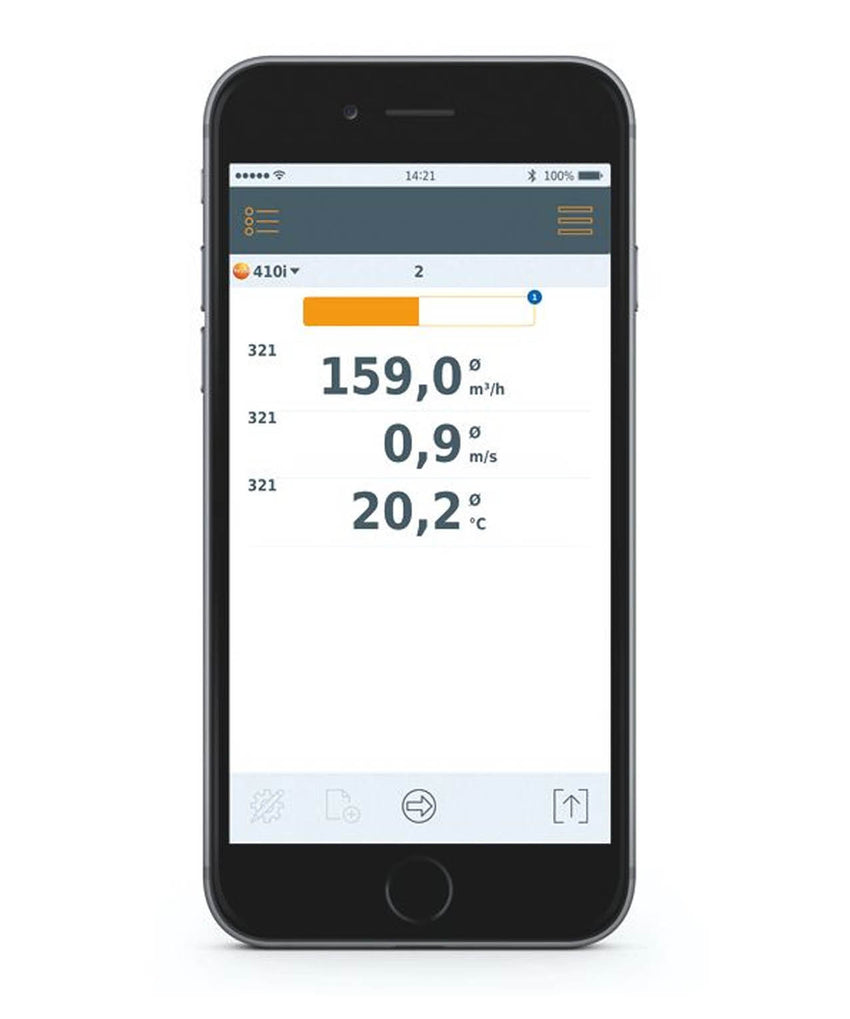

Configuration of the volume flow measurement is really easy with the App, partly due to the fact that you can carry out parametrization of the outlet (dimension, geometry) intuitively. Particularly useful: when adjusting a ventilation system, volume flows of multiple outlets can be cross-checked and compared. Timed and multi-point mean calculation also gives you a quick indication of the average air velocity, for example at a ventilation grille.

System requirements:

• iOS 8.3 or later
• Android 4.3 or later
• Bluetooth 4.0

Delivery Scope

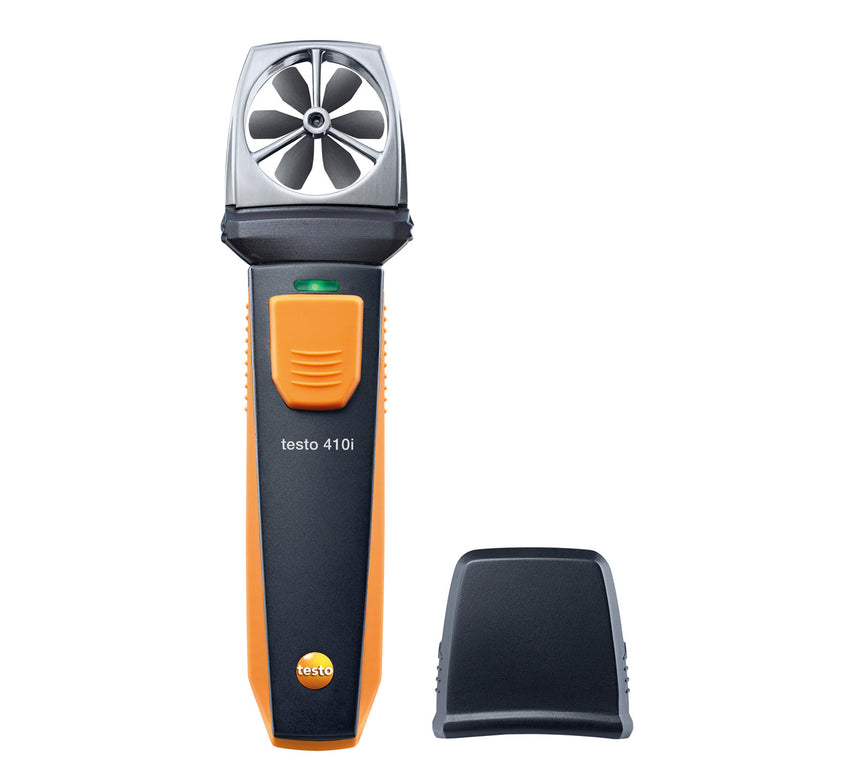

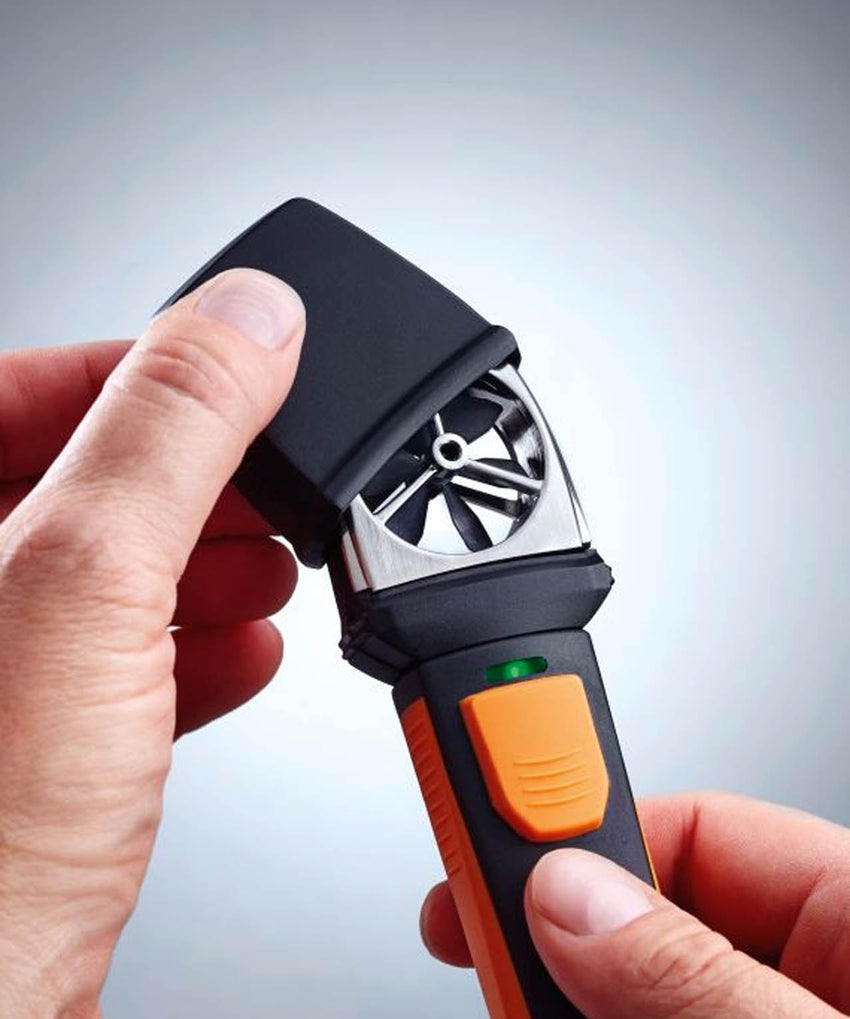

Testo 410i vane anemometer with smartphone operation, including protective cap, batteries and calibration protocol.

Temperature - NTC
Measuring range -20 to +60 °C
Accuracy ±0.5 °C
Resolution 0.1 °C

Velocity - Vane
Measuring range 0.4 to 30 m/s
Accuracy ±(0.2 m/s + 2 % of mv) (0.4 to 20 m/s)
Resolution 0.1 m/s

General technical data
Dimensions 154 x 43 x 21 mm
Operating temperature -20 to +50 °C
System requirements requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Battery type 3 AAA micro batteries
Battery life 130 h
Diameter vane 40 mm
Storage temperature -20 to +60 °C

• Testo Smart Probes VAC set with smartphone operation. Part Number: 0563 0003

• Testo Smart Case “VAC” – storage case for Smart Probes measuring instruments

• Product brochure Testo 410i (pdf)
• FAQ - Testo Smart Probes (application/pdf)

• Instruction manual Testo Smart Probes (application/pdf)
• Testo Smart Probes startup instruction (application/pdf)
• Smart Probes compatibility(pdf)
