Smart Probe Heating Set, Testo

$432.00
Loading reviews...

All prices are exclusive of GST

Part No.0563 0004

  • Measurement of gas flow and static pressure
  • Non-contact temperature measurement on underfloor heating systems and radiators
  • Measurement menu for pressure drop test, including alerts via Testo Smart Probes App
  • Rapid image documentation with IR temperature readings and measuring spot marking

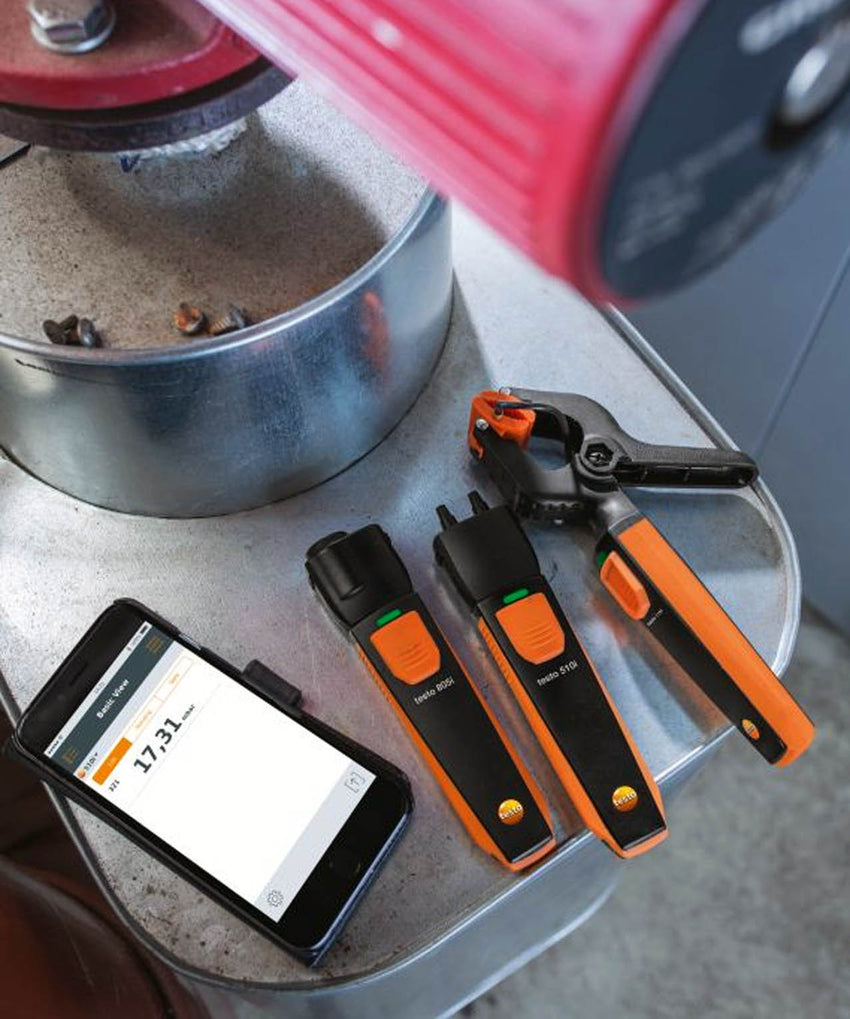

With the Testo Smart Probes Heating set, you can measure and check all heating system temperatures and pressures in conjunction with your smartphone. The robust Testo Smart Case enables the measuring instruments to be conveniently transported and ensures that they are always to hand when needed.

    Product Description
    The compact testo Smart Probes Heating set with the testo 115i clamp thermometer, the testo 510i differential pressure measuring instrument and the testo 805i infrared thermometer is ideal for key measuring tasks carried out by heating engineers.

    The advantages of the heating set
    In conjunction with your smartphone or tablet, the heating set can be used to measure and check all heating system temperatures and pressures. The handy testo Smart Case provides optimum protection for the measuring instruments and ensures that they are always to hand when they are needed.

    Advantages and applications of the individual measuring instruments:

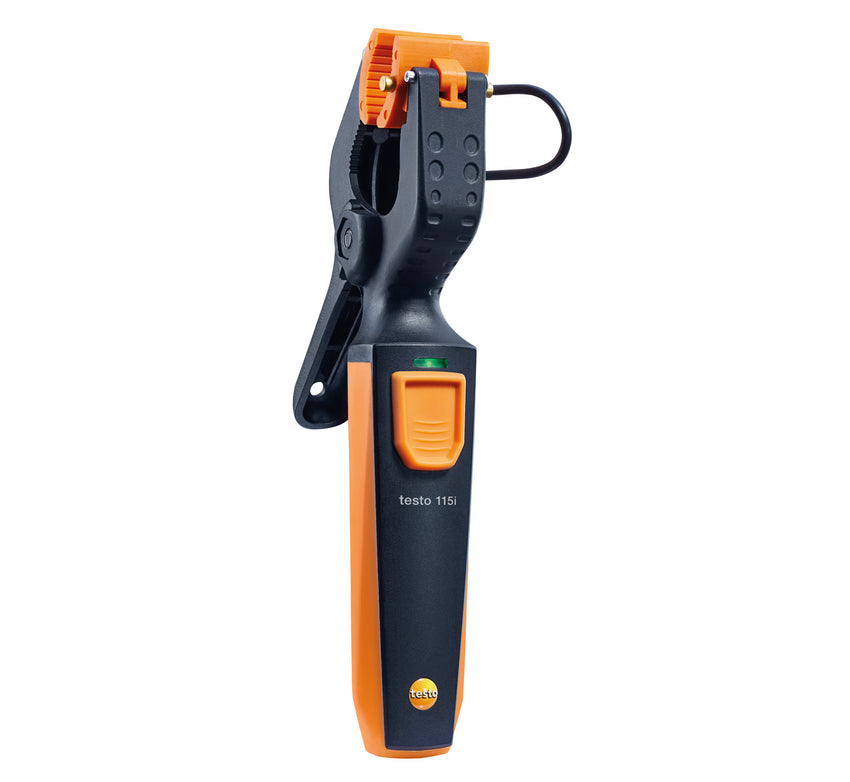

    Testo 115i: clamp thermometer with smartphone operation
    Measuring the flow and return temperature of heating systems
    Easy to use at measuring points that are far apart
    Rapid detection of temperature changes via graphical progress display

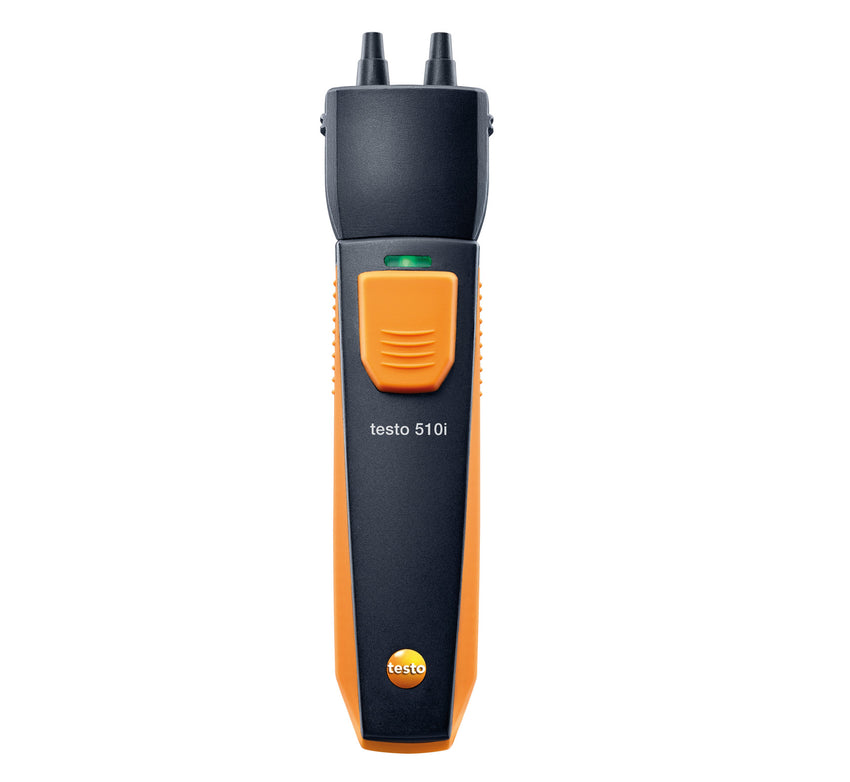

    Testo 510i: differential pressure measuring instrument with smartphone operation
    Measurement of gas flow and static pressure
    Measurement menu for pressure drop test including alerts
    Simple configuration and determination of volume flow with Pitot tube
    Magnetic holder for easy attachment

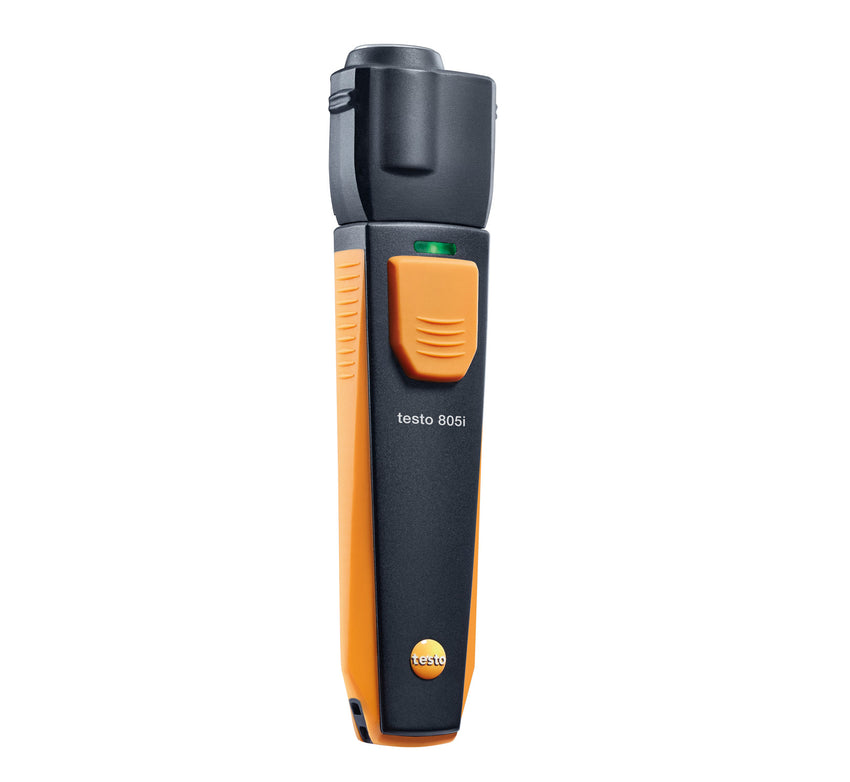

    Testo 805i: infrared thermometer with smartphone operation
    Non-contact infrared measurement of surface temperature
    Measuring spot marking via highly visible 8-point laser circle
    Easy selection of emission level via stored materials list
    Image documentation with readings and measuring spot marking

    Practical App with special functions for measurement data analysis on your smartphone or tablet
    Measurement data is transmitted wirelessly from the relevant measuring instrument to the testo Smart Probes App and can be viewed conveniently on mobile terminal devices – either as a chart or in table form. Menus for specific applications are also already stored in the App. For example, for pressure drop tests including alert function and for non-contact temperature measurement via infrared with rapid image documentation including reading and measuring spot marking. The measurement data log can be emailed directly as a PDF or Excel file. This saves you time, allowing you to further increase your efficiency.

    System requirements:

    • iOS 8.3 or later
    • Android 4.3 or later
    • Bluetooth 4.0

    Delivery Scope

    • Testo 115i surface thermometer with smartphone operation, including batteries and calibration protocol.
    • Testo 510i differential pressure measuring instrument with smartphone operation, including hose set (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol.
    • Testo 805i infrared thermometer with smartphone operation, including batteries and calibration protocol.

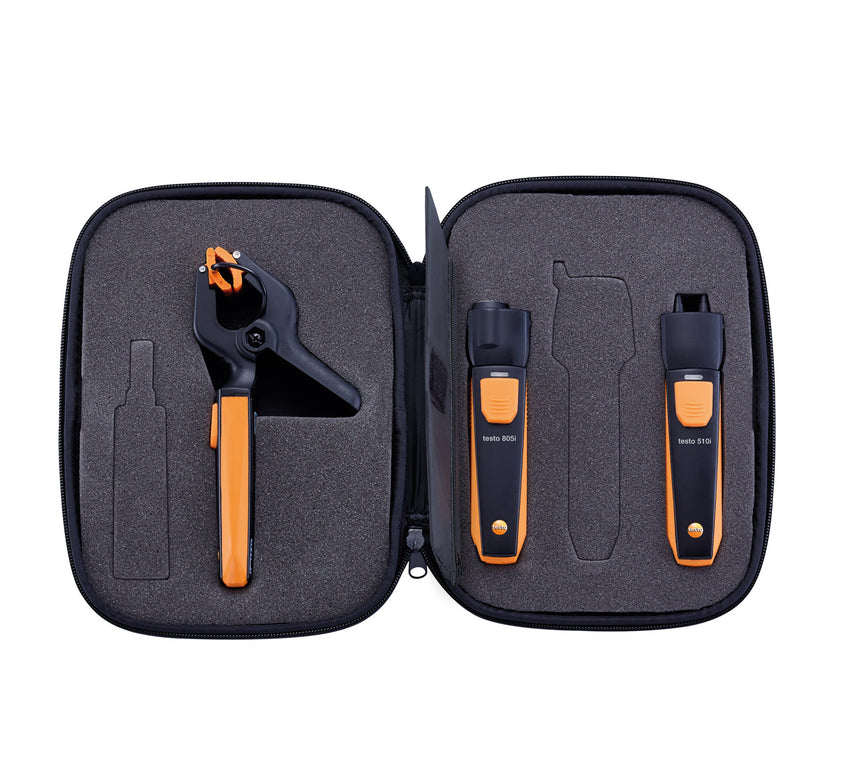

    • Testo Smart Case “Heating”, including foam insert.

    Temperature - NTC
    Measuring range -40 to +150 °C
    Accuracy ±1.3 °C (-20 to +85 °C)
    Resolution 0.1 °C

    Temperature - Infrared
    Measuring range -30 to +250 °C

    Accuracy
    ±1.5 °C or ±1.5 % of mv (0 to +250 °C)
    ±2 °C (-20 to -0.1 °C)
    ±2.5 °C (-30 to -20.1 °C)

    Resolution 0.1 °C

    Differential pressure (internal sensor) - Piezoresistive
    Measuring range -150 to +150 hPa

    Accuracy
    ±0.05 hPa (0 to +1 hPa)
    ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)

    Resolution 0.01 hPa

    General technical data
    Dimensions
    183 x 90 x 30 mm (testo 115i)
    148 x 36 x 23 mm (testo 510i)
    140 x 36 x 25 mm (testo 805i)

    Operating temperature
    -20 to +50 °C (testo 115i + testo 510i)
    -10 to +50 °C (testo 805i)

    System requirements requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
    Battery type 3 AAA micro batteries
    Battery life 150 h (testo 115i); 150 h (testo 510i); 30 h (testo 805i)
    Storage temperature -20 to +60 °C
