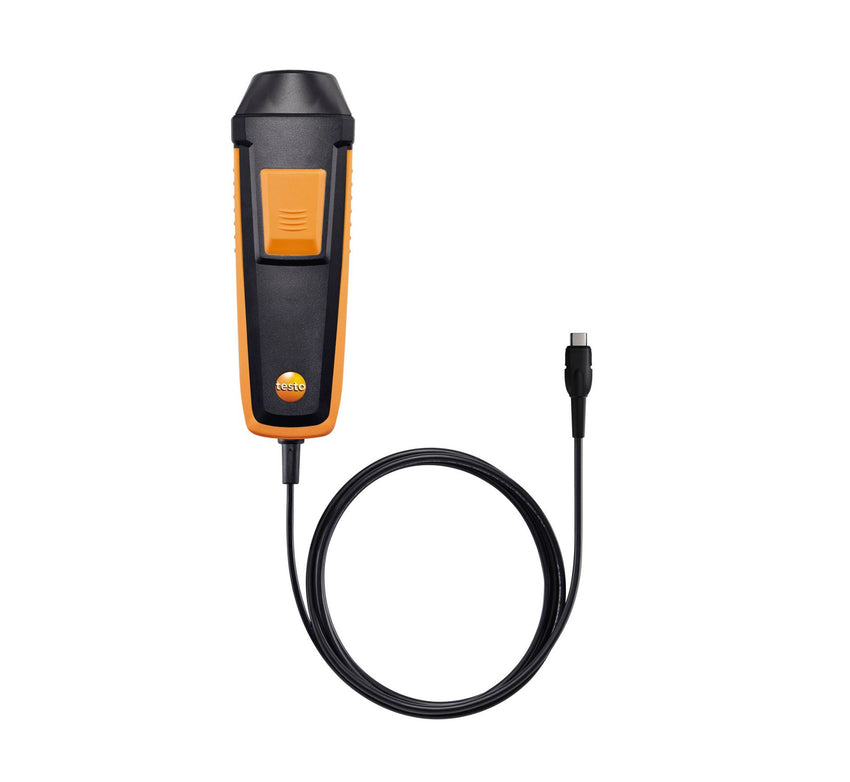

Universal cable handle for connecting probe heads - Testo

All prices are exclusive of GST

Part No. 0554 2222

• Transmit readings via cable
• The handle can easily be connected to a probe head or extendable telescope
• Use the button on the handle to store individual readings in the compatible measuring instrument

Use the cable handle if Bluetooth® signals are not permitted: the readings are transmitted to the compatible measuring instrument via the fixed cable. Combine the handle with different probe heads (please order separately) to easily expand your portfolio of probes.

Product Description
You can easily expand your portfolio of probes by connecting the handle to different probe heads. The extendable telescope for air velocity probes can also easily be connected to the handle.

The readings are transmitted to your measuring instrument (please order separately) via the fixed cable (cable length 1.4 m). Particularly useful: operate the measuring instrument by pressing the button on the handle – for example, to store individual readings.

Please note that you need our adapter (order number 0554 2160) to connect probe heads for air velocity measurement or the extendable telescope for air velocity measurement to the handle.

Delivery Scope
Cable handle with fixed cable (cable length 1.4 m).

General technical data
Dimensions 165 x 50 x 40 mm
Operating temperature -5 to +50 °C
Cable length 1.4 m
Storage temperature -20 to +60 °C
Weight 140 g

Sensor Heads

• Hot wire probe head including temperature and humidity sensor: for attachment to extendable telescope for air velocity probes with universal handle – measuring range 0 to +50 m/s, -20 to +70 °C, 5 to 95% RH. Order Number: 0635 1570. Click here to view product.


• 16 mm vane probe head including temperature sensor 16 mm vane probe head including temperature sensor; for attachment to extendable telescope for air velocity probes with universal handle – measuring range +0.6 to +50 m/s, -10 to +70 °C. Order Number: 0635 9570. Click here to view product.


• High-precision 100 mm vane probe head including temperature sensor High-precision 100 mm vane probe head including temperature sensor: for attachment to extendable telescope for air velocity probes with universal handle or to a universal Bluetooth® or cable handle – measuring range +0.1 to +15 m/s, -20 to +70 °C. Order Number: 0635 9370. Click here to view product.


• 100 mm vane probe head 100 mm vane probe head: for attachment to extendable telescope for air velocity probes with universal handle or to universal Bluetooth® or cable handle – measuring range +0.3 to +35 m/s, -20 to +70 °C. Order Number: 0635 9430. Click here to view product.


• Humidity/temperature probe head Humidity/temperature probe head: for attachment to universal Bluetooth® or cable handle – accuracy ±2% RH / ±0.5 °C, measuring range 0 to 100% RH / -20 to +70 °C. Order Number: 0636 9730. Click here to view product.


• High-precision humidity/temperature probe head High-precision humidity/temperature probe head: for attachment to a universal Bluetooth® or cable handle – accuracy: ±(0.6% RH + 0.7 % of m.v.) (0 to 90% RH) / ±0.3 °C (+15 to +30 °C). Order Number: 0636 9770. Click here to view product.


• CO2 probe head including temperature and humidity sensor CO₂ probe head including temperature and humidity sensor: for attachment to universal Bluetooth® or cable handle – measuring range 0 to 10,000 ppm, -10 to +50 °C, 5 to 95% RH. Order Number: 0632 1550. Click here to view product.


• CO probe head CO probe head: for attachment to universal Bluetooth® or cable handle – measuring range 0 to 500 ppm. Order Number: 0632 1270. Click here to view product.
