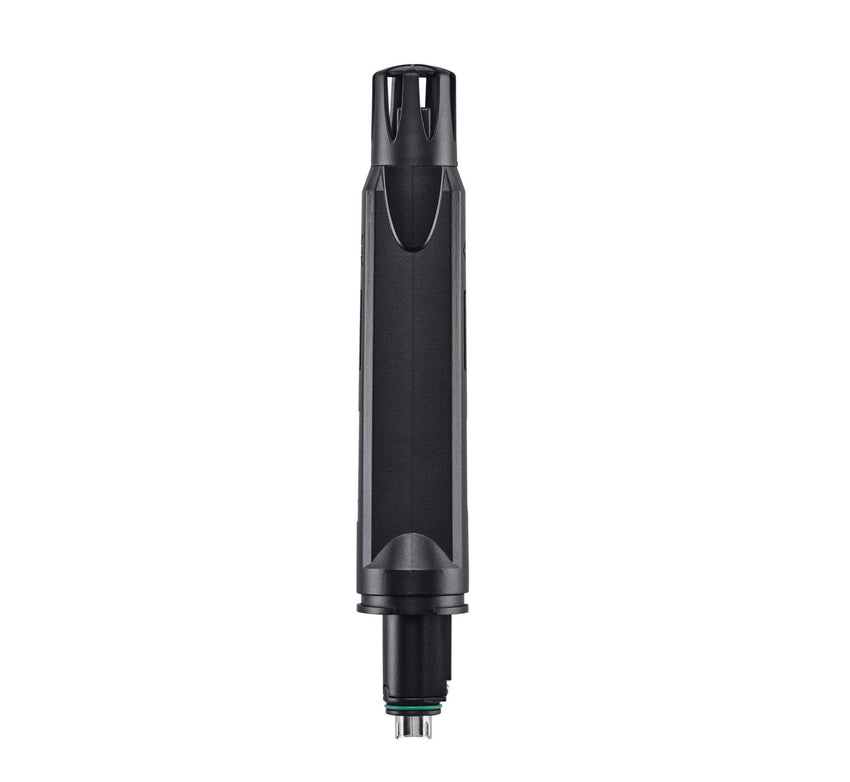

CO2 probe head including temp and humidity sensor - Testo

All prices are exclusive of GST

Part No. 0632 1550

• Intuitive: parallel determination of CO₂ concentration, humidity and air temperature in indoor areas, including long-term measurement
• Precise: absolute pressure compensation, calculation of wet bulb temperature, dew point and absolute humidity
• Convenient: probe head is easy to attach to the universal handle with Bluetooth or cable (available to order separately)
• Intelligent calibration concept: only send in the probe head for calibration

More applications, less equipment: if you already own one of our probes with a universal handle, you can easily expand your portfolio of probes with the CO₂ probe head.

Delivery Scope
CO2 probe head including temperature and humidity sensor and calibration protocol.

Please do not use the probe head in condensing atmospheres. For continuous application in high-humidity ranges
> 80% RH at ≤ 30 °C for > 12 h
> 60% RH at > 30 °C for > 12 h
Please contact us for assistance.

Temperature - NTC
Measuring range 0 to +50 °C
Accuracy ±0.5 °C
Resolution 0.1 °C

Humidity - Capacitive
Measuring range 5 to 95 %RH

Accuracy
±3 %RH (10 to 35 %RH)
±2 %RH (35 to 65 %RH)
±3 %RH (65 to 90 %RH)
±5 %RH (Remaining Range)

Resolution 0.1 %RH

Ambient CO₂
Measuring range 0 to 10000 ppm

Accuracy
±(50 ppm + 3 % of mv)
0 to 5000 ppm
±(100 ppm + 5 % of mv)
5001 to 10000 ppm

Resolution 1 ppm

General technical data
Storage temperature 0 to +50 °C
Dimensions 165 x 30 x 30 mm
Operating temperature 0 to +50 °C
Diameter probe shaft 30 mm
Weight 60 g

Manuals

• Instruction manual Testo Air velocity and IAQ probes with Bluetooth® handle (application/pdf)
