HVAC Tools | Ultimate Kit | Testo Smart Probes

$2,724.00
Loading reviews...

All prices are exclusive of GST

Part No. 0563 0002 32

Ultimate kit for all-round engineers in the field of heating, air conditioning, refrigeration and ventilation: The kit contains all the Testo Smart Probes and is ideal for carrying out functional checks or for plant maintenance, in conjunction with your smartphone/tablet. The Testo Smart App enables you to work more easily and efficiently: Automatically calculate numerous parameters such as superheating/subcooling, target superheat, cooling/heating power or differential temperature. Measurement data reports can be emailed directly as a PDF or Excel file.

  • For all measurements involving heating, air-conditioning, refrigeration and ventilation systems
  • All Smart Probes for temperature, pressure, humidity and flow in one kit
  • Display of measurement data progression as a graph or table
  • Transmission and analysis of measurement data via Testo Smart App.

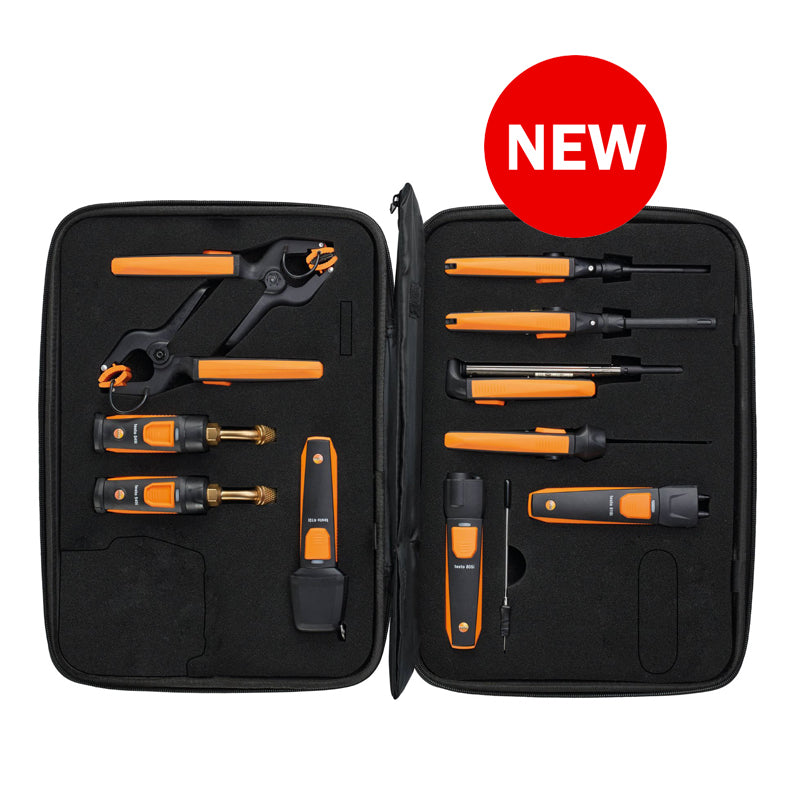

Delivery Scope

  • 2 x Testo 115i clamp thermometers operated via smartphone, including batteries and calibration protocol (0560 2115 02).
  • 2 x Testo 549i high-pressure gauges operated via smartphone, including batteries and calibration protocol (0560 2549 02).
  • 2 x Testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02).
  • 1 x Testo 915i thermometer with air probe (TC type K) operated via smartphone, including batteries and calibration protocol (563 3915).
  • 1 x Testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805).

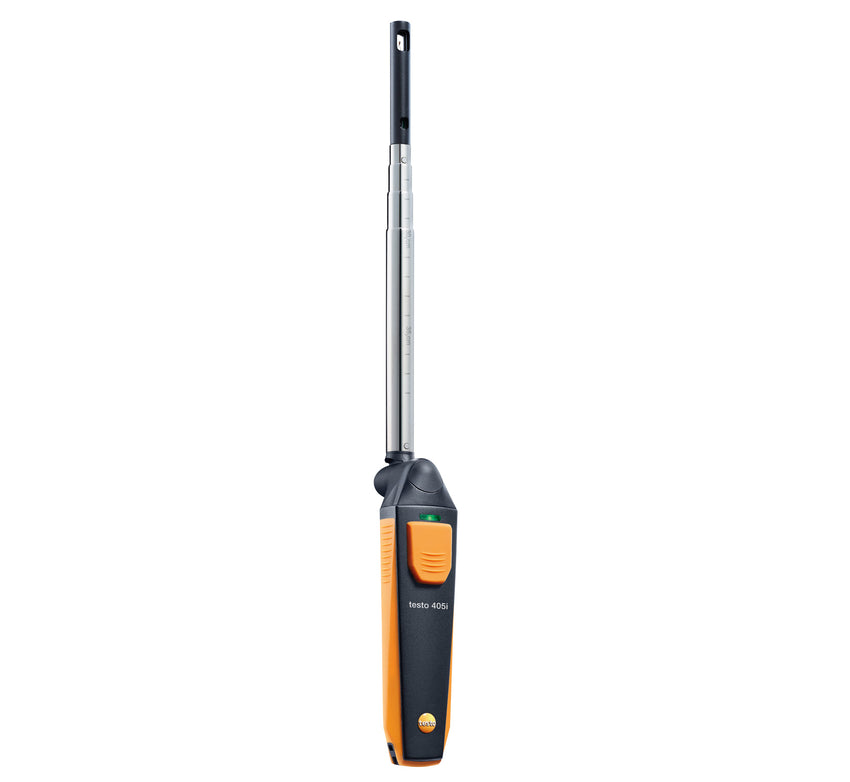

  • 1 x Testo 405i thermal anemometer operated via smartphone, including batteries and calibration protocol (0560 1405).
  • 1 x Testo 410i vane anemometer operated via smartphone, including batteries and calibration protocol (0560 1410).

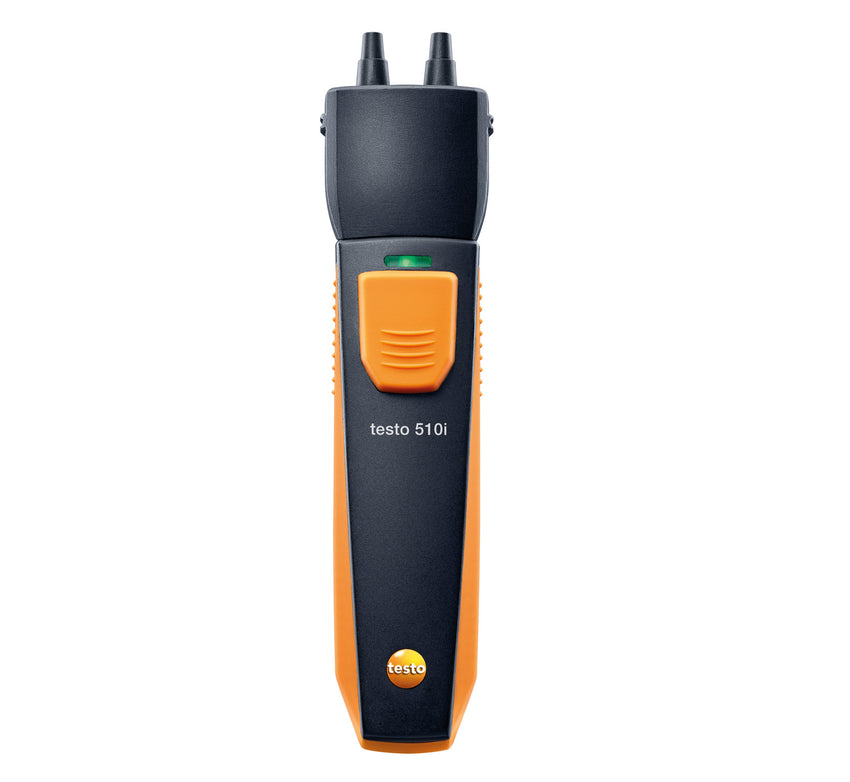

  • 1 x Testo 510i differential pressure measuring instrument operated via smartphone, including hose kit (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol (0560 1510).

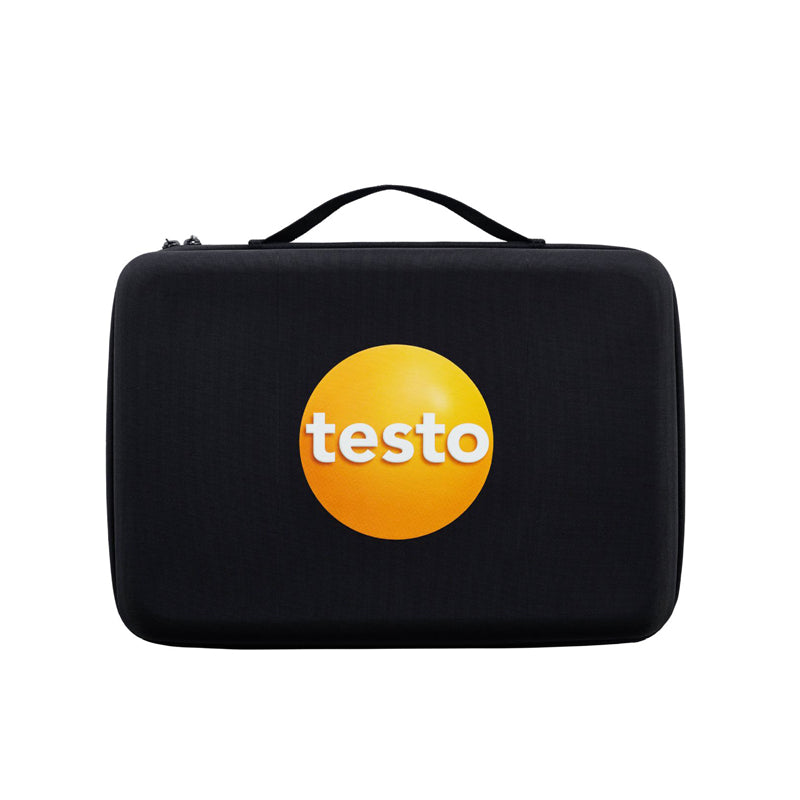

  • 1 x Testo HVAC softcase, including foam insert (0516 0283).

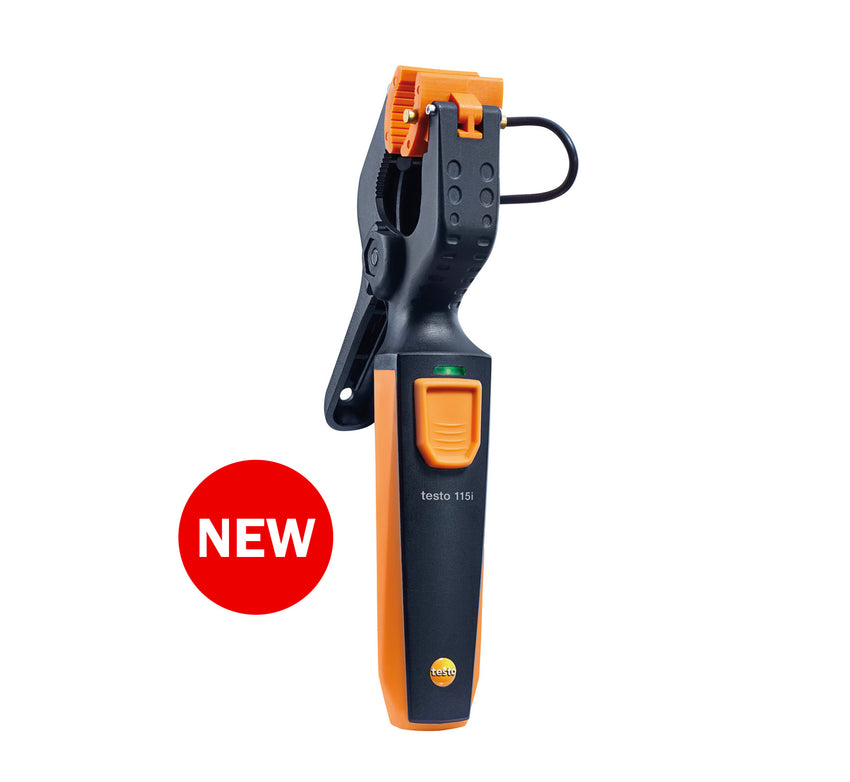

Testo 115i - Clamp thermometer
Temperature - NTC
Measuring range -40 to +150 °C
Accuracy ±1.3 °C (-20 to +85 °C)
Resolution 0.1 °C

General technical data
Weight 127.4 g
Dimensions 183 x 90 x 30 mm
Operating temperature -20 to +50 °C
Product-/housing material Plastic
System requirements requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour black/orange
Battery type 3 AAA micro batteries
Battery life 150 h
Data transfer Bluetooth®
Radio range 100 m
Storage temperature -20 to +60 °C

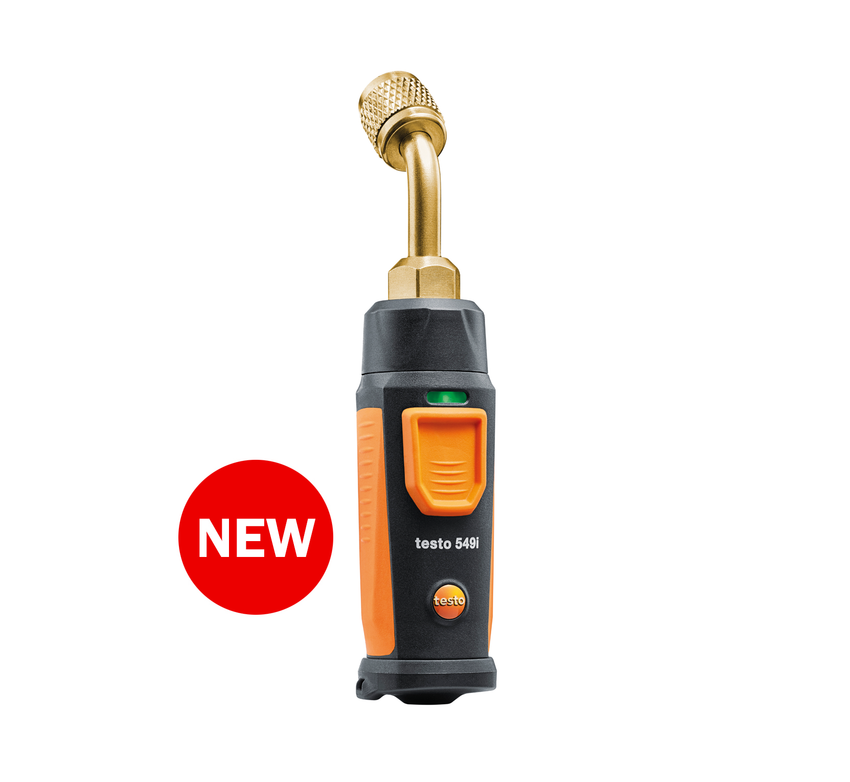

Testo 549i - High-pressure gauge
Pressure measurement
Measuring range -1 to +60 bar
Accuracy ±0.5 % of fsv
Resolution 0.01 bar
Probe connection 7 / 16 " - UNF
Overload rel. (high pressure) +65 bar

General technical data
Weight 156.6 g
Dimensions 125 x 32 x 31 mm
Operating temperature -20 to +50 °C
Product-/housing material Plastic
System requirements requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour black/orange
Battery type 3 AAA micro batteries
Battery life 130 h
Data transfer Bluetooth®
Radio range 100 m
Pressure media CFC, HFC, HCFC, N, H₂O, CO₂
Storage temperature -20 to +60 °C

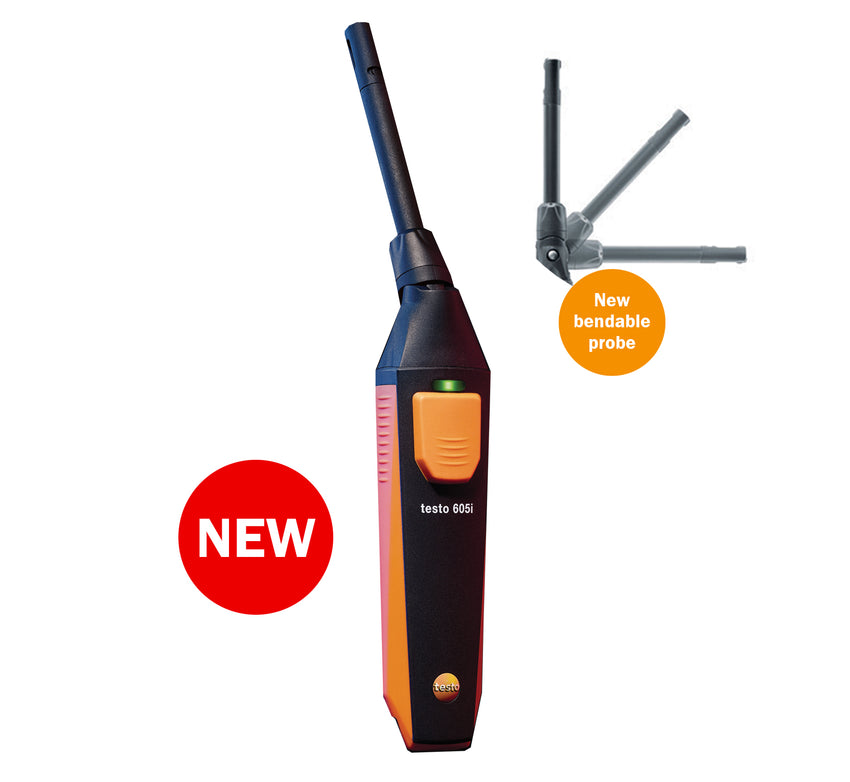

Testo 605i - Thermohygrometer
Temperature - NTC
Measuring range -20 to +60 °C

Accuracy
±0.8 °C (-20 to 0 °C)
±0.5 °C (0 to +60 °C)

Resolution 0.1 °C

Humidity - Capacitive
Measuring range 0 to 100 %RH

Accuracy
±3.0 %RH (10 to 35 %RH) (at +25°C)
±2.0 %RH (35 to 65 %RH) (at +25°C)
±3.0 %RH (65 to 90 %RH) (at +25°C)
±5 %RH (< 10 %RH or > 90 %RH)

Resolution 0.1 %RH

General technical data
Weight 86.4 g
Dimensions 243 x 30 x 24 mm
Operating temperature -20 to +50 °C
Product-/housing material Plastic
System requirements requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour black/orange
Battery type 3 AAA micro batteries
Battery life 150 h
Length probe shaft 100 mm
Data transfer Bluetooth®
Radio range 100m
Storage temperature -20 to +60°C

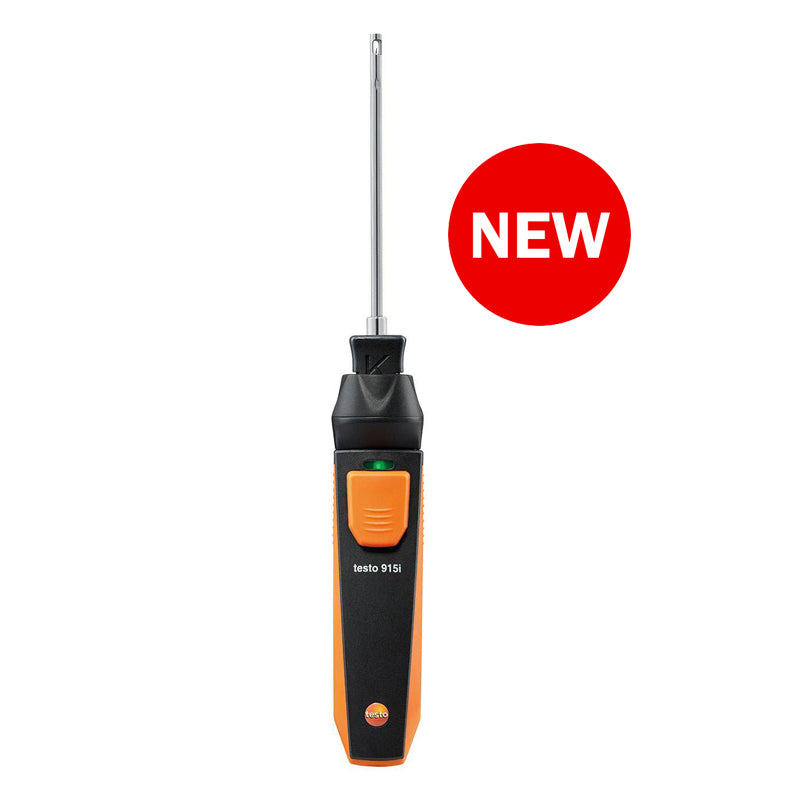

Testo 915i - Thermometer with air probe
Temperature - TC Type K (NiCr-Ni)
Measuring range -50 to +400 °C

Accuracy
±1.0 °C (-50 to +100 °C)
±1 % of mv (Remaining Range)

Resolution 0.1 °C
Reaction time t₉₀: 60s

General technical data
Weight air probe: 11 g, Bluetooth® handle: 88 g
Dimensions Bluetooth® handle: 129 x 31 x 31 mm (LxWxH)
Operating temperature -20 to +50 °C
Product-/housing material Plastic
Protection class IP20
System requirements requires iOS 12.0 or newer; requires mobile end device with Bluetooth 4.0; requires Android 6.0 or newer
Product colour black/orange
Plug-in probe connection Lockable connection to 4 standard probes testo 915i; Standard plug-in connection to other common TC probes
Length probe shaft 99 mm
Diameter probe shaft 4 mm
Battery type 3 AAA micro batteries
Battery life 150 h
Data transfer Bluetooth®; automatic connection to testo Smart App and Testo measuring instruments
Radio range 100 m
Storage temperature -20 to +60 °C

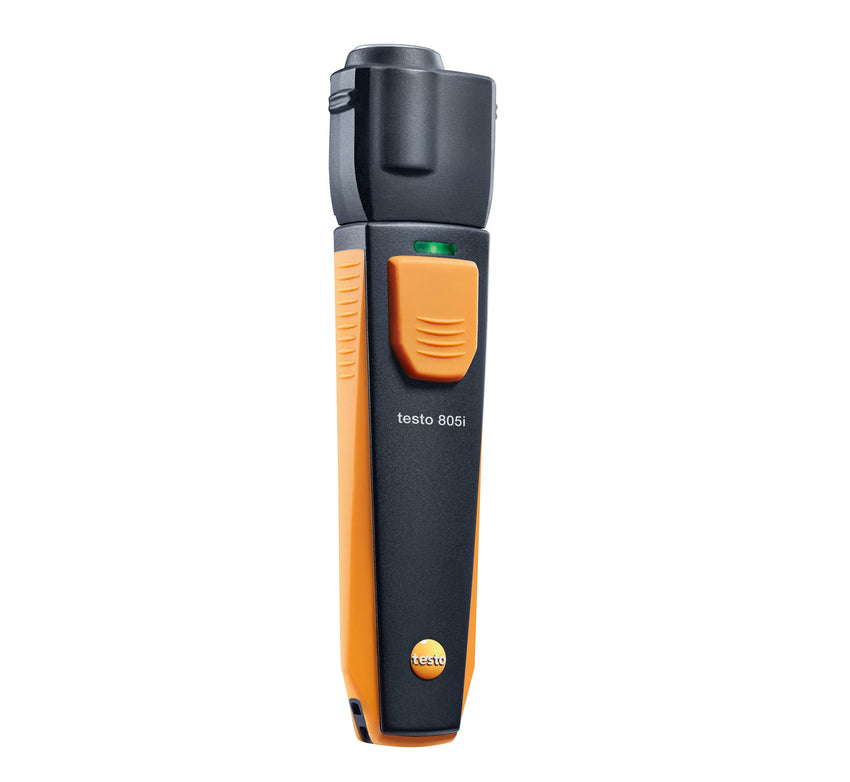

Testo 805i - infrared thermometer
Temperature - Infrared
Measuring range -30 to +250 °C

Accuracy
±1.5 °C or ±1.5 % of mv (0 to +250 °C)
±2 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C)

Resolution 0.1 °C

General technical data
Dimensions 140 x 36 x 25 mm
Operating temperature -10 to +50 °C
Product-/housing material ABS / TPE
System requirements requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour black/orange
Battery type 3 AAA micro batteries
Battery life 30 h
Storage temperature -20 to +60 °C
Weight 97g
