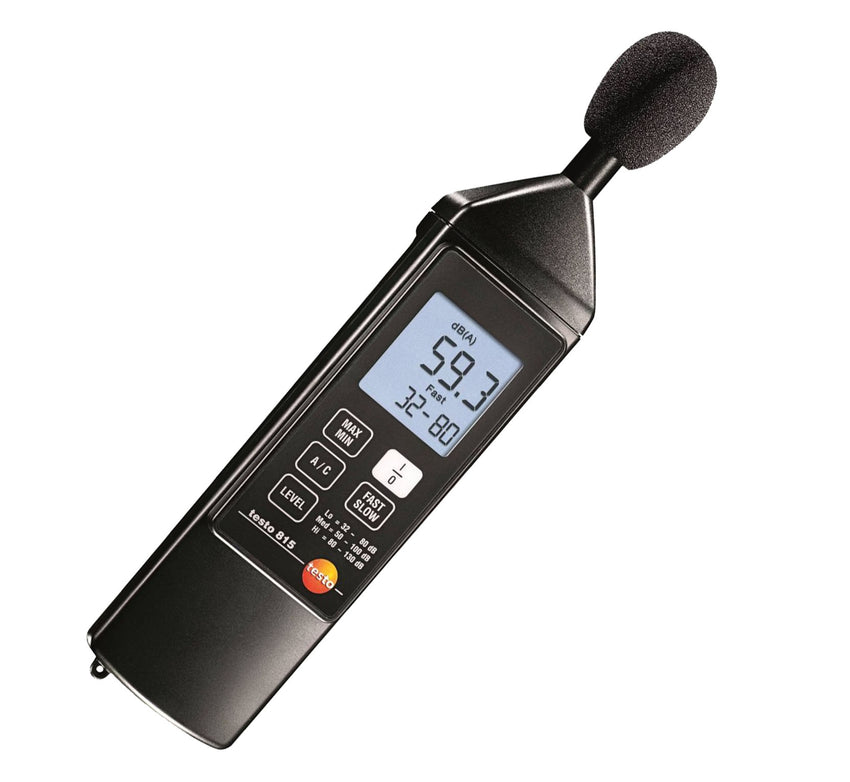

Sound Level Meter, Testo 815

ALL PRICES ARE EXCLUSIVE OF GST

Part No: 0563 8155

• Frequency evaluation according to characteristic curves A and C
• Easy to adjust (adjustment screwdriver included in the scope of delivery)
• Min./max. memory
• Integrated tripod knuckle screw (1/4 inch)

Determine the noise level quickly, easily and reliably in your day-to-day work: with the Testo 815 sound level meter.

Product Description
The Testo 815 sound level meter can be used for control measurements in the air conditioning and heating area, on combustion systems or at workplaces. It can also enable quick and precise assessment of machinery and discotheque noise.

Applications of the testo 815 sound level meter

• Heating technology: measurement of the volume of burners
• Industry and trade: measurement of machinery noise
• Event technology or public authorities: noise levels at events
• Building services: simple measurements by the caretaker when there are complaints

Delivery Scope
Testo 815 sound level meter, including screwdriver for calibration, wind protection and battery.

Sound Pressure
Measuring range +32 to +130 dB
Frequencey range 31.5 Hz to 8 kHz
Accuracy ±1.0 dB
Resolution 0.1 dB
Measuring rate 5 s

General technical data
Dimensions 255 x 55 x 43 mm
Operating temperature 0 to +40 °C
Housing ABS
Pressure dependency -0.002 dB/hPa
Frequency weighting A/C
Section measuring range 30 - 80 dB; 50 - 100 dB; 80 - 130 dB
Time weighting FAST 125 ms setting / SLOW 1 s setting
Battery type 9V block battery, 6F22
Battery life 70 h
Storage temperature -10 to +60 °C
Weight 195 g

Product Brochures

• Product brochure Testo 815 (PDF)

Manuals

• Instruction manual 815 (PDF)
• EU declaration of conformity Testo 815 (PDF)
