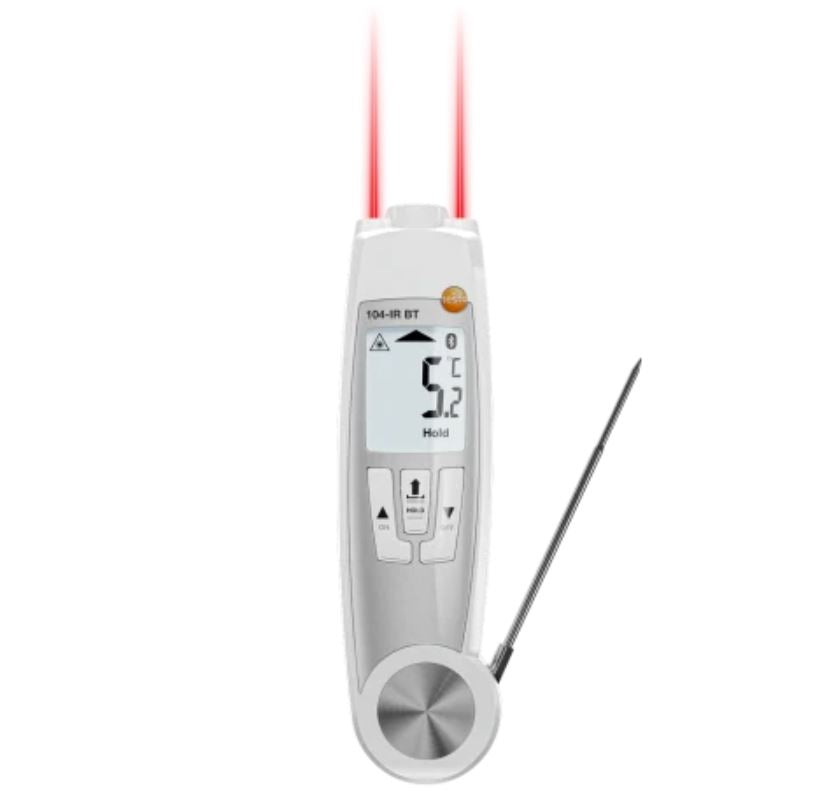

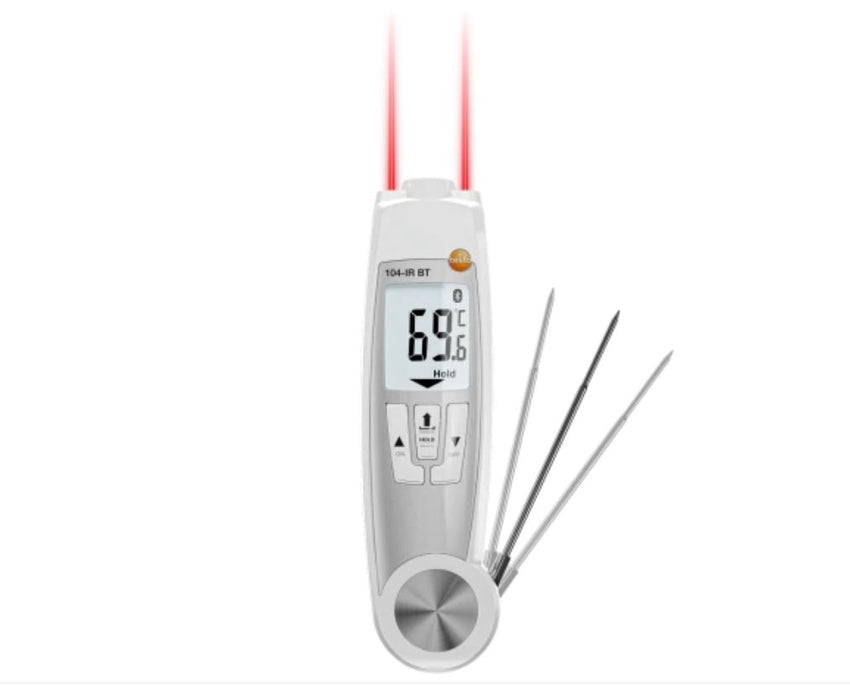

testo 104-IR BT - Infrared/penetration thermometer with app connection

ll prices are exclusive of GST

Part No. 0560 1045 60

• A measuring instrument for determining surface and core temperature with intuitive operation including seamless documentation via the testo Smart App
• Measurements possible with or without app. The app measurement program supports you with the measurement, especially of (critical) control points (CP/CCP)
• Error-free documentation via the testo Smart App
• Tracking of measurement data for regulatory requirements and internal quality assurance

The testo 104-IR BT penetration thermometer with integrated infrared sensor is a versatile measuring instrument for quick and reliable temperature checks in hectic daily practice and is particularly suitable for checks as part of HACCP processes. The testo Smart App connection makes digital documentation, and especially temperature limit monitoring (CP/CCP) easier than ever.

Would you like to do without the seamless documentation via the testo Smart App?
Find out more about the testo 104-IR - penetration/infrared thermometer here

Product Description

The testo 104-IR BT enables non-contact measurement of surface temperatures and also offers the option of measuring the core temperature if upper or lower limit values are violated. All measurement values are automatically transmitted to the testo Smart App via Bluetooth - reliably and securely.

Operation of the testo 104-IR BT is simple and intuitive:

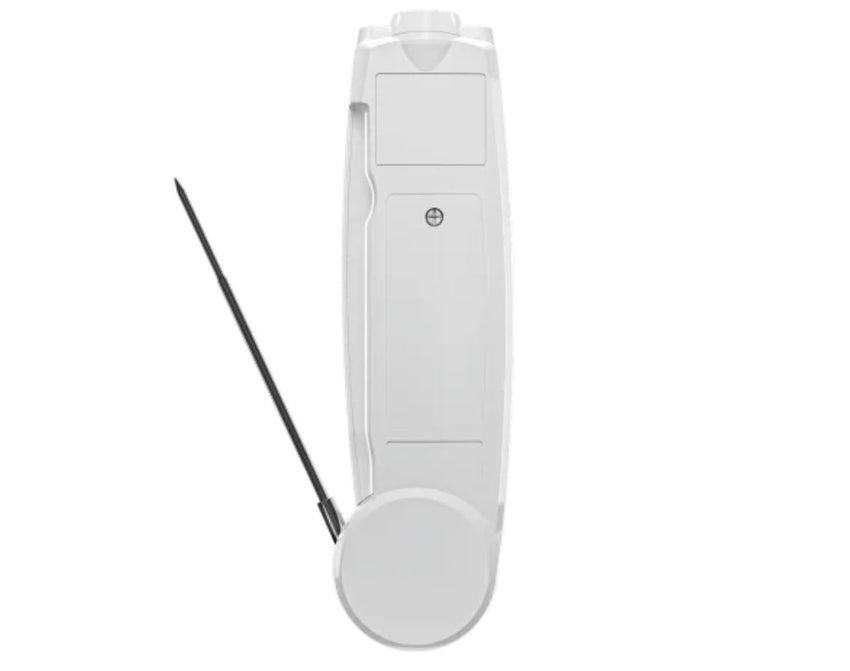

The compact instrument's penetration probe is safely stowed away in the housing . The instrument is activated as soon as the penetration probe is folded out. The infrared measurement starts immediately at the touch of a button. The measurement results are very easy to read on the large display, the few buttons are self-explanatory and can be operated easily without much training.

Another practical advantage: The penetration/infrared thermometer is waterproof (IP65).
Thanks to its functionality and user-friendliness, the testo 104-IR BT enables efficient and precise temperature measurement without time-consuming processes or compromises.
With this instrument, you have full control over all temperature measurements in the food sector and can ensure the quality of your products:

• Wide range of applications with or without app connection
• Precise control point measurements (CP/CCP) with error-free digital documentation


  Delivery Scope
  The waterproof infrared/penetration thermometer with Bluetooth testo 104-IR BT including folding penetration probe, batteries, quick guide and calibration protocol.


Temperature - NTC

Measuring range    -50 to +250 °C
Accuracy ±1.0 °C (-50 to -30.1 °C)
±1 % of mv (+100 to +250 °C)
Resolution 0.1 °C
Reaction time t₉₉ = 10 s (measured in moving liquid)
Measuring rate 0.5 s

Temperature - Infrared
Measuring range -30 to +250 °C
Accuracy ±2.5 (-30.0 to 20.1 )
±2.0 °C (-20.0 to -0.1 °C)
±1.5 °C or ±1.5 % of the measurement value (+0.0 to +250.0 °C)
Resolution 0.1 °C
Measuring rate 0.5 s

General technical data
Weight 207 g (incl. batteries)
Operating temperature -20 to +50 °C
Product-/housing material ABS / TPE / PC, diecast zinc, stainless steel
Protection class IP65
Mobile app Can be used with or without testo Smart App

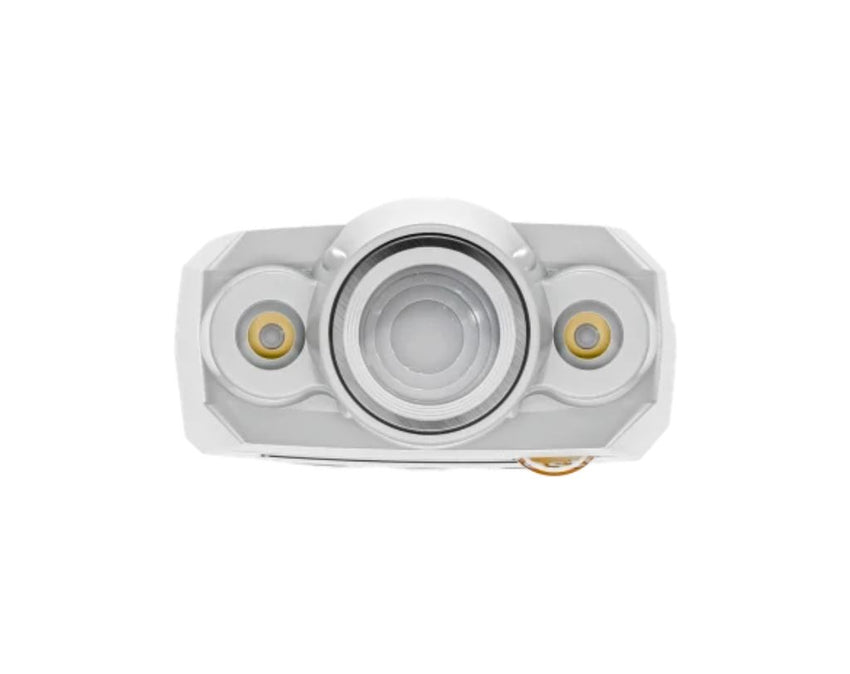

Spectral range 8 ... 14 μm
Laser 2 point laser
Optics 10:1 + opening diameter of the sensor (12 mm)
Wavelength 650nm Power <1mW
Dimensions (probe folded out) 281 x 48 x 21
Dimensions (probe not folded out)
178 x 48 x 21
Measurement value Temperature °C / °F / °R
Standards EN 13485; HACCP International; NSF
Battery type 2 AAA micro batteries
Storage temperature -30 to +50 °C (without batteries up to +70 °C)

Product Brochures

• Data sheet testo 104-IR BT

Manuals

• Instruction manual testo 104-IR BT
