testo 558s Smart Vacuum Kit with filling hoses - Smart digital manifold with wireless temperature and vacuum probes and 4-hose charging set

All prices are exclusive of GST

Part no 0564 5583

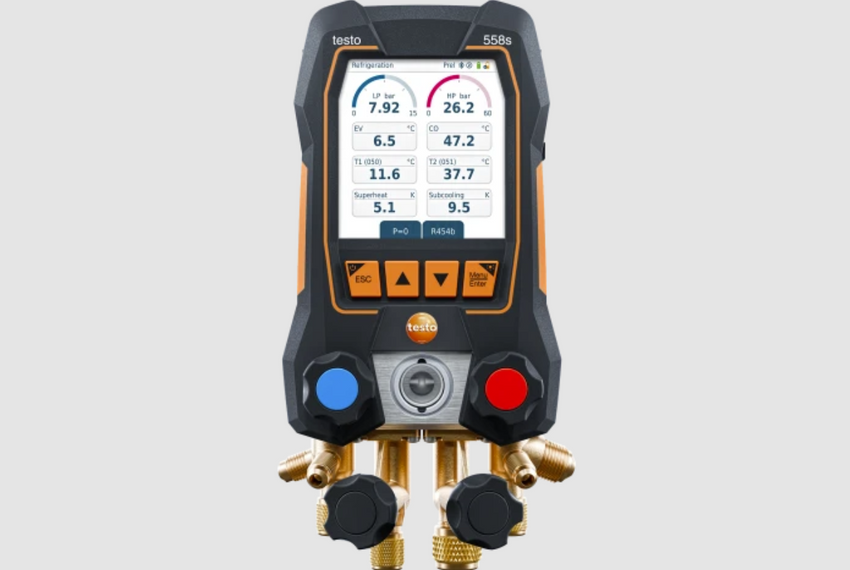

• Intuitive app feel in your manifold, with touchscreen and clear visualization of readings
• Everything in one instrument: All measurement applications in one manifold and wireless connection to the entire refrigeration portfolio
• A3 and A2L compatibility for maximum safety
• Trend curves of readings over a 30-minute period
• Full flexibility thanks to unique operability via touchscreen, classic operation via keypad and testo Smart App

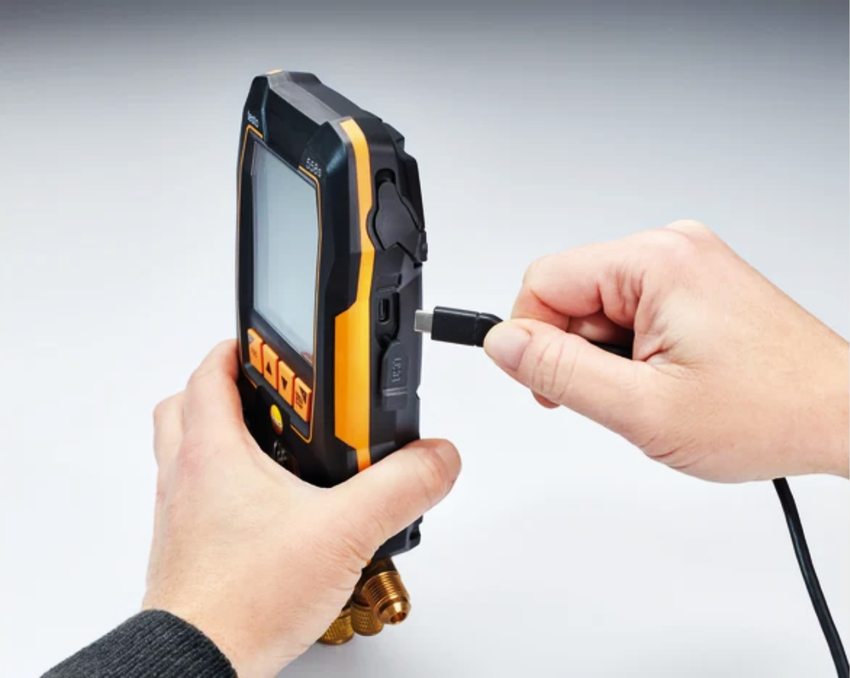

• Always ready for use, with hybrid charging system consisting of non-rechargeable batteries and rechargeable battery (USB-C) and robust thanks to protection class IP54

Product Description

Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 558s digital manifold with Bluetooth connection to the wireless temperature and vacuum probes, together with the 4-hose charging set included in the kit, offers the ideal basis for carrying out everyday measuring tasks. The testo 558s offers intuitive operation thanks to its touchscreen and clear measurement graphs on a large colour display. In addition to the touchscreen, the manifold can also be operated via keys when working with gloves. Thanks to its A3 and A2L compatibility, high robustness with IP54 and hybrid charging system comprising rechargeable and non-rechargeable batteries, the manifold is ideal for every situation.

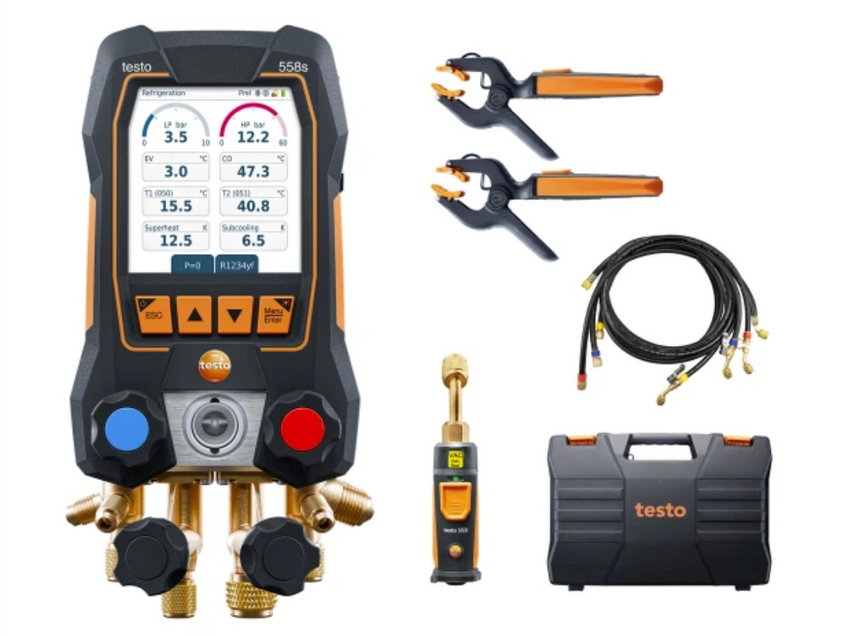

Delivery scope

• testo 558s digital 4-way manifold
• 2 x testo 115i wireless clamp thermometers
• 1 x testo 552i wireless vacuum probe
• 3 x hose charging set with valve 1/4" - 1/4" SAE (7/16" - 7/16" UNF)
• 1 x Vacuum hose 3/8" SAE (5/8" UNF)
• Transport case
• USB-C cable
• testo Smart App (free download)
• Calibration protocol
• Instruction manual


testo 558s - Digital manifold with 4-way valve block and intuitive touchscreen

Temperature
Measuring range -50 to +150 °C
Accuracy ±0.5 °C
Resolution 0.1 °C
Probe connection 2 x Plug-in (NTC)

Pressure measurement
Measuring range -1 to 60 bar
Accuracy ±0.25 % fs
Resolution 0.01 bar
Probe connection 3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (high pressure) 65 bar
Overload rel. (low pressure) 65 bar

General technical data
Weight 1.3 kg
Dimensions 229 x 112.5 x 71 mm
Operating temperature -20 to +50 °C
Protection class IP54
Auto-off instrument  10 min
Battery type Built-in rechargeable battery: LI batttery 18650; 3x AA; Replaceable battery: 3 alkaline batteries AA
Battery life ≤ 70 h with backlighting and Bluetooth®
Display type    capacitive touch display
Interface Bluetooth 5.0 ®
Radio range    150 m
Storage temperature -20 to +60 °C

Refrigeration systems, air conditioning systems, heat pumps

Product Brochures

• Data sheet testo 558s
• testo 558s Instruction manual
• Quickstart testo 558s
• Technical Documentation A2L/A2/A3 refrigerant testo 558s
