testo 860i kit - Wireless thermal imager for smartphones

All prices are exclusive of GST

Part No.  0563 0860

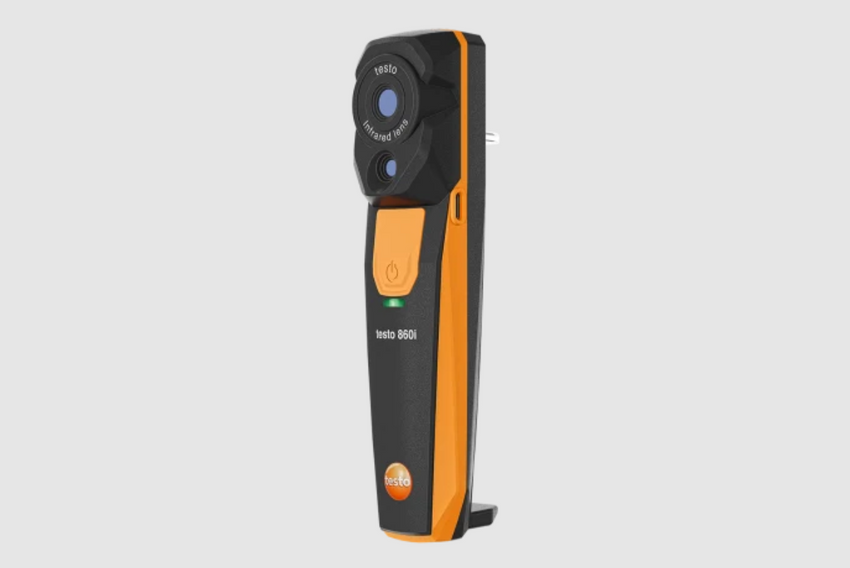

testo 860i kit - Wireless thermal imager for smartphones

• Quick and easy determination of Delta T in the thermal image using application-specific measurement functions DeltaHeat and DeltaCool
• Ultra-sharp thermal images thanks to high infrared resolution (256 x 192 pixels)
  Everything is simple with the testo Smart App: easy to use and effortless documentation sent on site

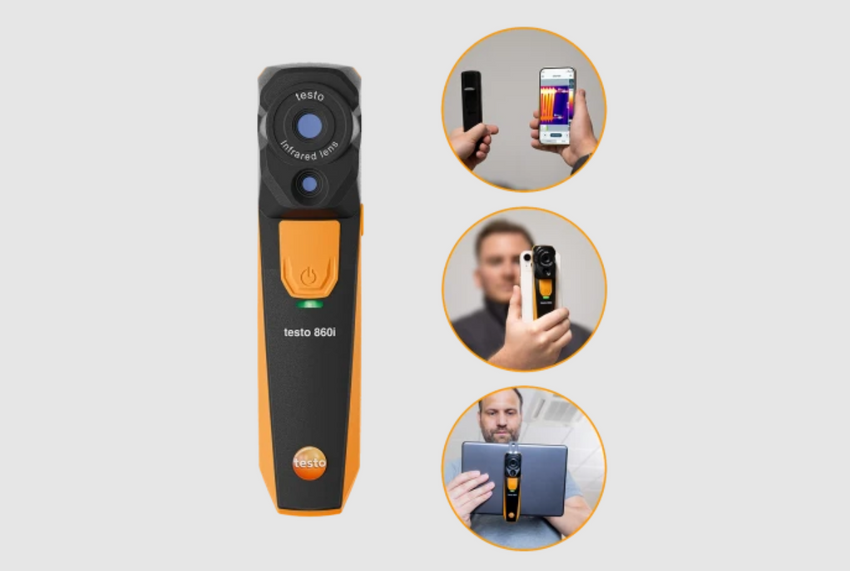

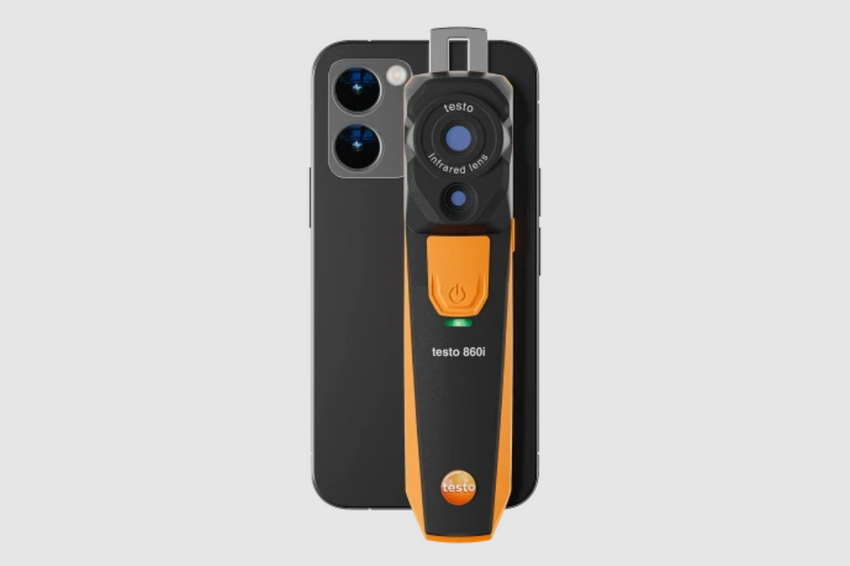

• Flexible to use with its wireless function or one-handed when directly attached to a smartphone
• Highly practical and durable with IP54 protection and drop resistance up to 1.5 m

The testo 860i wireless thermal imager for smartphones enables quick and easy determination of Delta T in the thermal image using the application-specific measurement functions DeltaHeat and DeltaCool. With crystal-clear thermal images thanks to high infrared resolution and simple operation via the testo Smart App, it offers flexible application options and high practicality for everyday use, either wirelessly or with one-handed operation directly on the smartphone.

Ideal for service engineers, electricians, facility managers and building energy consultants. The Testo 883 thermal imager is a reliable partner when carrying out your thermal measuring tasks.

Product Description

The new testo 860i wireless thermal imager for smartphones is easy to use and display in the testo Smart App making it the perfect choice for quick spot checks in HVAC, maintenance, buildings and many other applications.

testo 860i enables quick and easy determination of Delta T (differential temperature) in the thermal image using application-specific measurement functions:

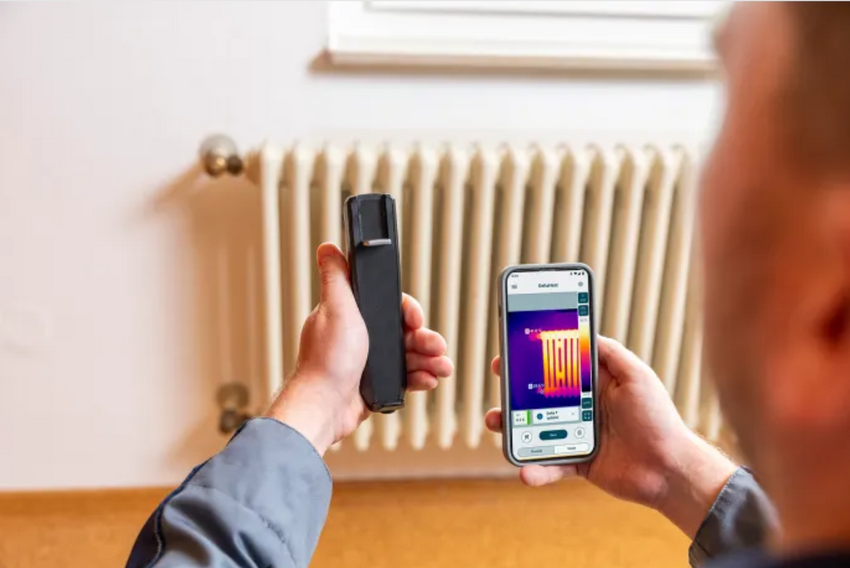

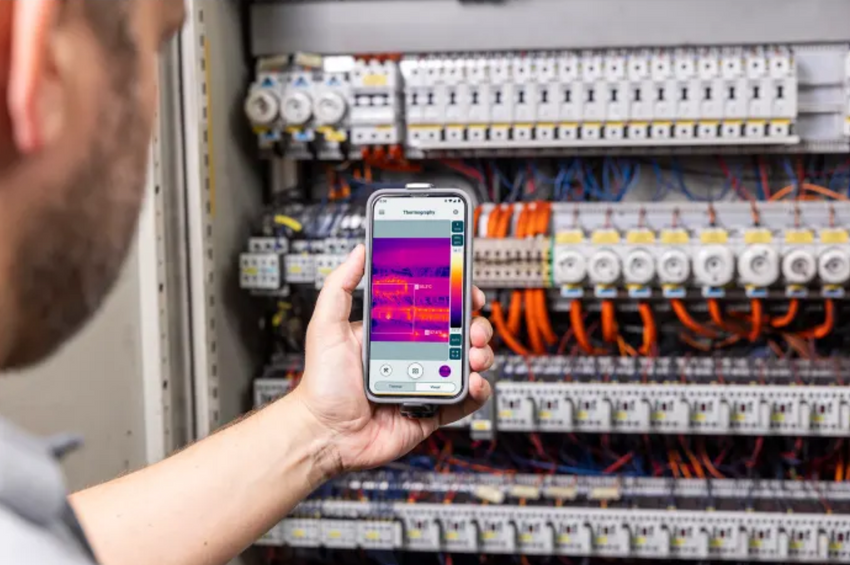

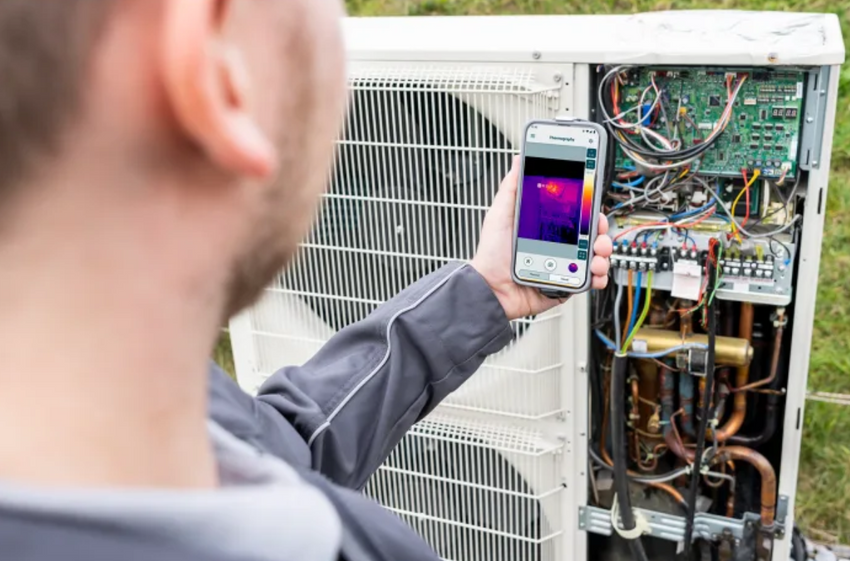

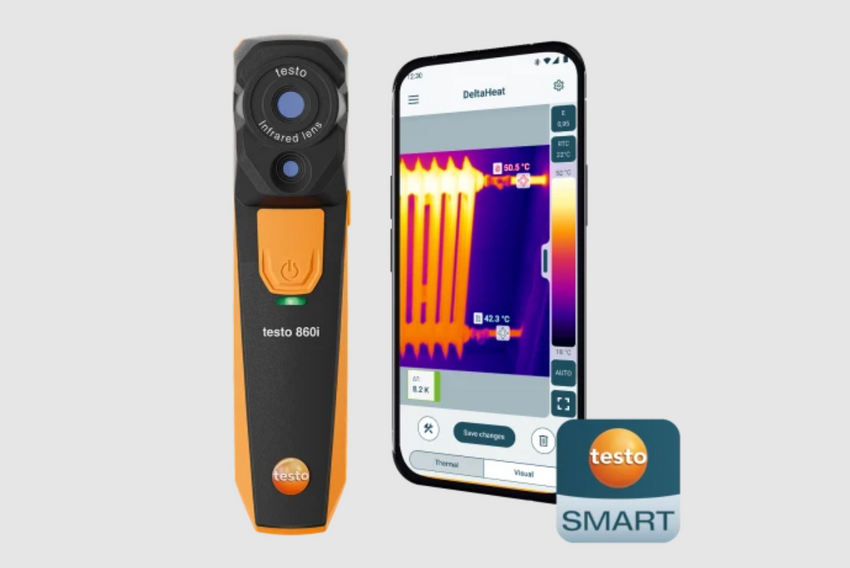

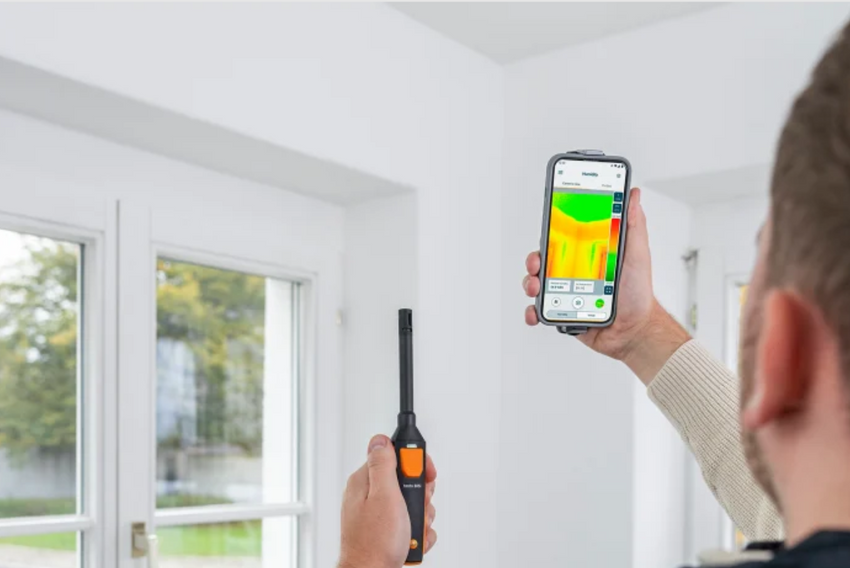

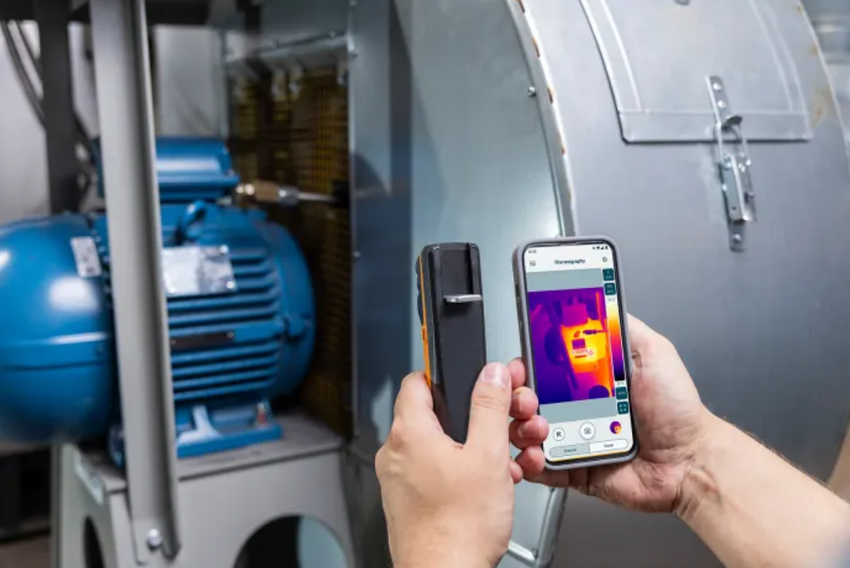

DeltaHeat for quick determination of the spread between the flow and return temperatures of radiators, DeltaCool for quick assessment of the temperature differential in refrigeration and air conditioning systems. The humidity mode function also helps to assess the risk of mould in indoor environments. The thermography measurement function shows hotspots and Delta T quickly and easily during maintenance.

The testo Smart App is used to operate the testo 860i, display the thermal image and differential temperature, and for documentation – it’s simple, fast and smart. The testo 860i can be used flexibly, either directly attached to the smartphone/tablet for one-handed operation or separately. What’s more, its high suitability for everyday use, robustness and rechargeable lithium battery with a long operating time make the testo 860i a reliable companion.

testo 860i wireless thermal imager for smartphones, bag, USB-C cable.

Testo 883 Thermal Imager

General technical data

Protection class IP54
System requirements requires iOS 17 or newer; requires Android 14 or newer; requires mobile end device with Bluetooth 4.0
Display lighting bright / normal / dark

Infrared image output

Field of view 48° x 36°
Focus Fixed focus
Minimum focus distance  0.3 m
Image refresh rate 9 Hz
Infrared resolution 256 x 192 pixels
Thermal sensitivity 50 mk
Spectral range 8 to 14 µm

Image output visual

Minimum focus distance 0.4 m
Image size 640 x 480 pixels

Image presentation

Colours     iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette
Digital zoom yes
Display option IR image / real image (in the testo Smart App)

Measurement

Accuracy ±3 °C or ±3 % of m.v. (at ambient temperature of -10... +40 °C and scene temperature of 0... +150 °C or +100... +350 °C)
Emissivity  0.01 to 1
Measuring range    -20 to +350 °C
Reflected temperature manual; (via testo Smart App)

Measuring function

Analysis function Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area)
Electrical mode - manual  Input of current, voltage or power
Humidity mode - manual    yes
Humidity measurement with humidity measuring instrument    Automatic transfer of the optional testo 605i or testo 625 thermohygrometer readings via Bluetooth to the testo Smart App
Electrical measurement with clamp meter    Automatic reading transfer of the optional testo 770-3 clamp meter via Bluetooth to the testo Smart App
Application-specific measurement functions DeltaHeat; DeltaCool; Humidity mode
(in the testo Smart App)

Imager equipment

Full screen mode yes
WLAN Connectivity Communication with the testo Smart App; WIFI: IEEE 802.11b/g/n*
Bluetooth Peer-to-peer advertising for fast connection set-up*
Remote-controlled operation    Up to 10 m from the mobile device (via WLAN)

* An overview of the radio authorisations in the different countries can be found in the download section of the testo 860i product page in the "Quick Start Guide testo 860i" document.

Imager storage

File format image .bmt; .jpg; .csv
Storage device    On a mobile device

Power supply

Battery type    Integrated Li-ion rechargeable battery
Charging options USB-C
Charging time    Approx. 90 min (15-min charge of an empty battery equals 30 min of operating time)

Ambient Condition

Air humidity 5 to 95 %RH, non-condensing
Vibration IEC 60068-2-6
Impact resistance test    1.5 m
Storage temperature -20 to +70 °C
Operating temperature    -10 to +50 °C

Physical specification

Tripod mounting     1/4" - 20UNC

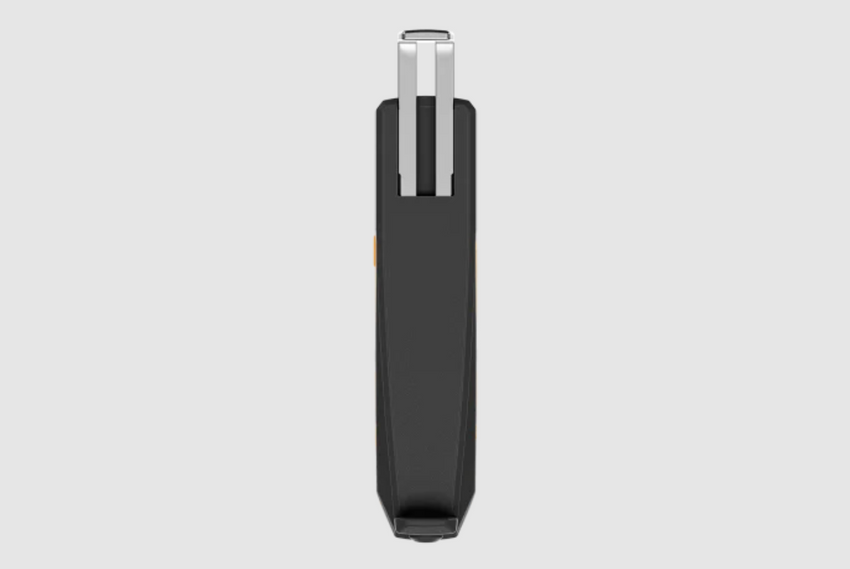

Mobile device attachment Clip span: min. 120 mm, max. 170 mm and device depth up to max. 12 mm
Weight    195 g
Dimensions 165 x 45 x 38 mm

 PC software

System requirements    Windows® 10; Windows® 11
(testo IRSoft)
