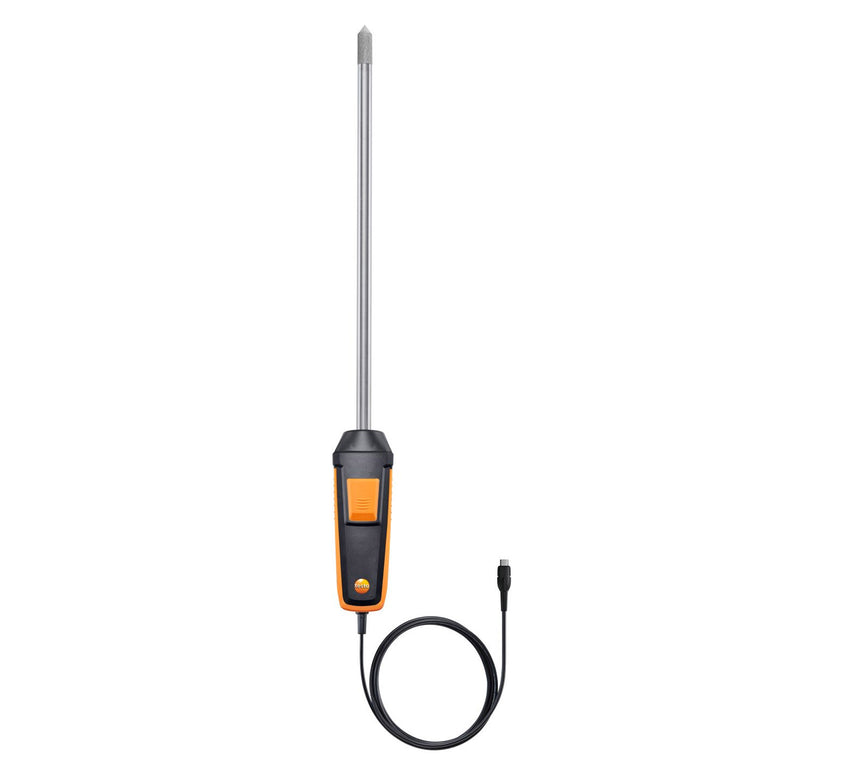

Robust humidity/temperature probe (digital) - for temperatures up to +180°C - wired

$1,355.00
Loading reviews...

All prices are exclusive of GST

Part No. 0636 9775

  • Intuitive: clearly structured measurement menu for long-term measurement and parallel determination of relative humidity and air temperature in industrial exhaust air, bulk goods and climatic test cabinets
  • Precise: calculation of wet bulb temperature, dew point and absolute humidity
  • Robust: suitable for measurements in harsh environmental conditions up to +180 °C
  • Intelligent calibration concept

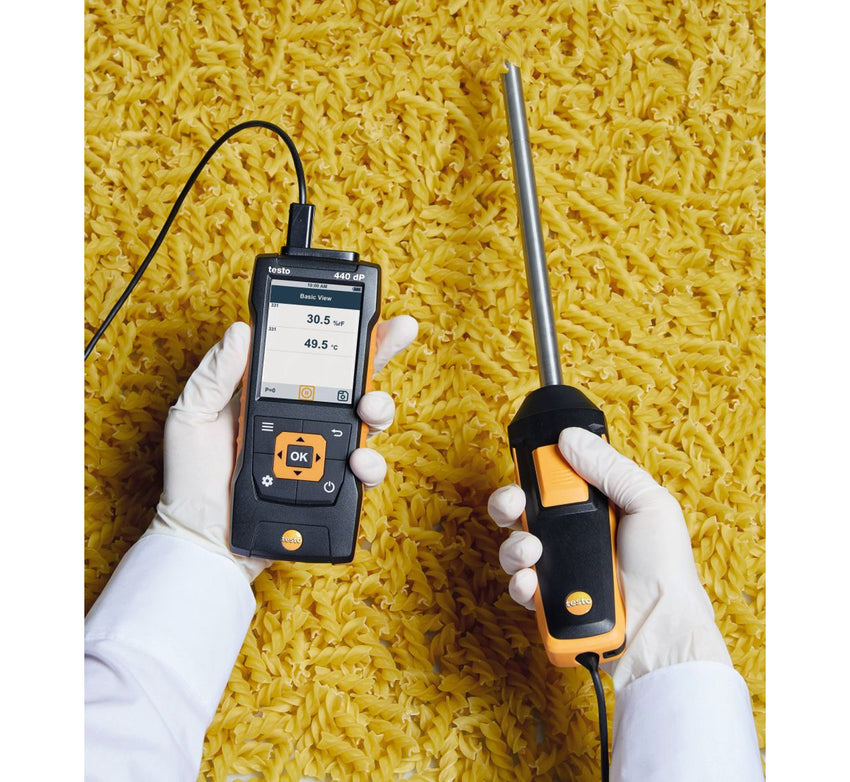

For measurements in industrial exhaust air, in bulk materials and in climatic test cabinets: use the robust humidity/temperature probe (with the compatible measuring instrument) to measure relative humidity and air temperature up to +180 °C.

Product Description
Use the robust humidity/temperature probe with the compatible Testo multi-function measuring instrument (please order separately) to measure relative humidity and air temperature. Absolute humidity, wet bulb temperature and dew point are calculated at the same time.

Robust humidity/temperature probe – features and areas of application
Use the fixed cable to connect the probe to the measuring instrument.

Particularly useful: store individual readings directly in the measuring instrument by pressing the button on the probe. The clearly structured measurement menu for long-term measurement enables the measuring instrument to be operated intuitively. Reading trends are reliably recorded thanks to the convenient input of measurement time and measuring cycle.

The robust humidity/temperature probe was specifically designed for use in sophisticated production and treatment processes. The screwable PTFE sintered filter is highly resistant to aggressive media and is water-repellent, and reliably protects the humidity and temperature sensor. The probe can be used in dusty atmospheres, at high air velocity and under mechanical stress: for example, for measurements in industrial exhaust air (during drying processes), in bulk materials and in climatic test cabinets.

Intelligent calibration concept
You will get exceptionally accurate measurement results with the digital humidity/temperature probe, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration – so the measuring instrument remains in continuous use.

Delivery Scope
Robust humidity/temperature probe with fixed cable (cable length 1.4 m) and calibration protocol.

Please do not use the probe in condensing atmospheres. For continuous application in high-humidity ranges
> 80% RH at ≤ 30 °C for > 12 h
> 60% RH at > 30 °C for > 12 h
Please contact us for assistance.

Temperature - NTC
Measuring range -20 to +180 °C

Accuracy
±0.5 °C (-20 to 0 °C)
±0.4 °C (+0.1 to +50 °C)
±0.5 °C (+50.1 to +180 °C)

Resolution 0.1 °C

Humidity - Capacitive
Measuring range 0 to 100 %RH

Accuracy
±3 %RH (0 to 2 %RH)
±2 %RH (2.1 to 98 %RH)
±3 %RH (98 to 100 %RH)

Resolution 0.1 %RH

General technical data
Storage temperature -20 to +60 °C
Dimensions 420 x 50 x 40 mm
Operating temperature -5 to +50 °C
Cable length 1.4 m
Diameter probe shaft 12 mm
Weight 255g
