Flue Gas Analyser Set (O2, CO up to 4,000 ppm) with Printer - Testo 300

 All prices are exclusive of GST

 Part No. 0564 3002 71

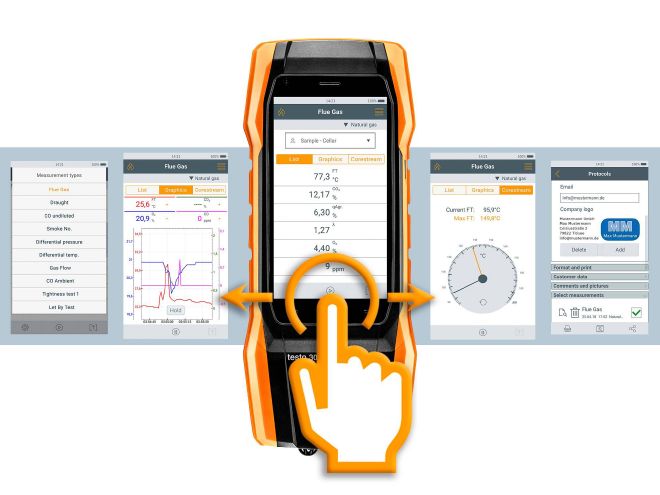

• Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display
• Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously

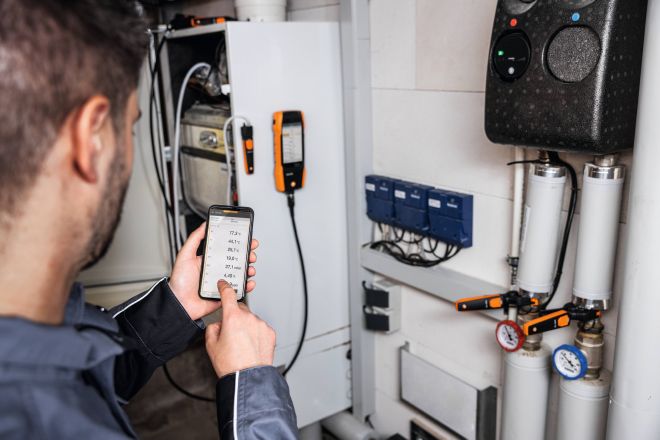

• Practical second screen function and easy data integration into user-specific software

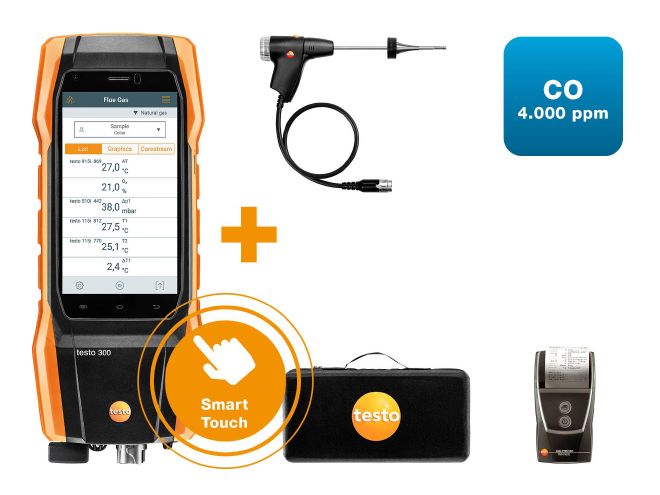

In the kit: testo 300 NEXT LEVEL flue gas analyzer, including O2 and CO sensor up to 4,000 ppm, mains unit, basic flue gas probe, testo Bluetooth® Connector, spare dirt filters, testo Bluetooth® printer, spare thermal paper, EasyHeat software, instrument case

Product Description

With this kit, you will be equipped for the most important measurements involving heating systems: the TÜV-tested testo 300 NEXT LEVEL flue gas analyzer is supplied with O2 and CO sensor up to 4,000 ppm, basic flue gas probe, testo Bluetooth® Connector, testo Bluetooth® printer, instrument case and practical accessories.

Scope of Delivery

• testo 300 NEXT LEVEL flue gas analyzer with O2 and CO sensor up to 4,000 ppm (0633 3002 70)
• USB mains unit, including cable (0554 1106)

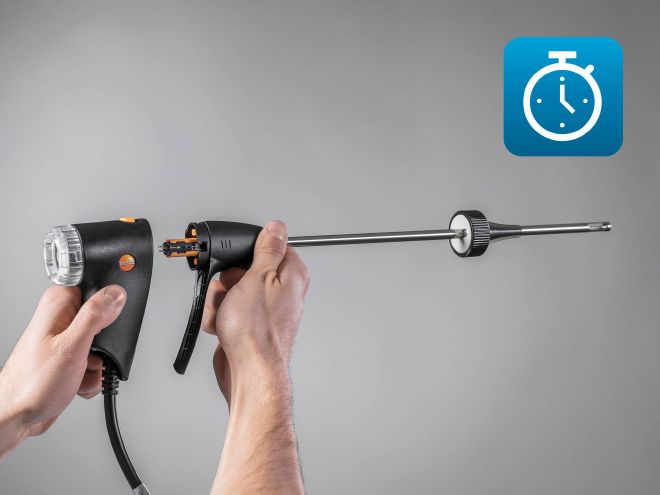

• Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax. 500°C; 1.5 m hose; including dirt filters and cone for fixing (0600 9740)
• testo Bluetooth® Connector (0554 3004)
• Spare dirt filters, compact probe; 10 off (0554 0040)

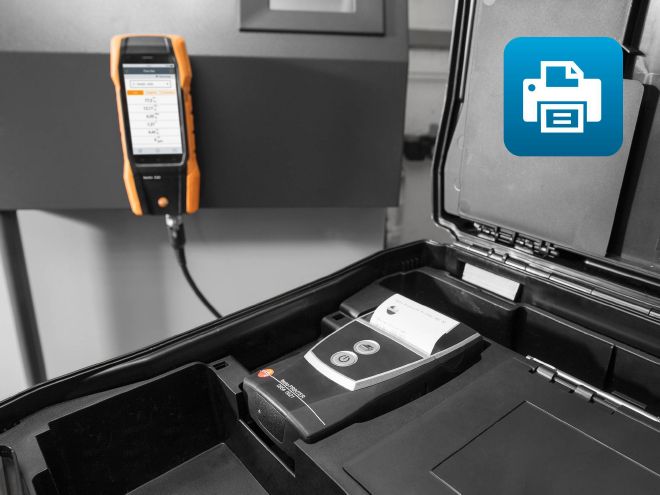

• BLUETOOTH®/IRDA printer, including 1 roll of thermal paper and rechargeable battery (0554 0621)
• Spare thermal paper for printer, indelible ink (0554 0568)
• Free download EasyHeat PC software (0554 3332)
• Instrument bag (0516 3001)

Temperature - TC Type K (NiCr-Ni)
Measuring range -40 to +1200 °C
Accuracy ±0.5 °C (0.0 to +100.0 °C)
±0.5 % of mv (Remaining Range)
Resolution 0.1 °C (-40 to +999.9 °C)
1 °C (Remaining Range)

Differential Pressure - Piezoresistive
Measuring range -100 to +200 hPa
Accuracy ±0.5 hPa (0 to +50.0 hPa)
±1 % of mv (+50.1 to +100.0 hPa)
±1.5 % of mv (+100.1 to +200 hPa)
Resolution 0.01 hPa

Flue gas O₂
Measuring range 0 to 21 Vol.%
Accuracy ±0.2 Vol.%
Resolution 0.1 Vol.%

Differential Pressure flue gas Draught - Piezoresistive
Measuring range -9.99 to +40 hPa
Accuracy ±0.005 hPa (+0 to +0.1 hPa)
±0.02 hPa (+0.1 to +3.00 hPa)
±1.5 % of mv (3.01 to +40 hPa)
Resolution 0.001 hPa (0 to 0.1 hPa)
0.01 hPa (Remaining Range)

Flue gas degree of effectivity, Eta (calculated)
Measuring range 0 to 120 %
Resolution 0.1 %

Flue gas loss (calculated)
Measuring range 0 to 99.9 %
Resolution 0.1 %

Flue gas CO₂ calculation (calculated from O₂)
Measuring range Display range 0 to CO₂ max
Accuracy ±0.2 Vol.%
Resolution 0.1 Vol.%

Flue gas CO (without H₂-compensation)
Measuring range 0 to 4000 ppm
Accuracy ±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
±10 % of mv (2001 to 4000 ppm)
Resolution 1 ppm

Ambient CO
Measuring range 0 to 2000 ppm
Accuracy ±10 ppm (0 to 100 ppm)
±10 % of mv (101 to 2000 ppm)
Resolution 1 ppm

General technical data
Operating humidity 15 to 90 %RH non-condensing
Weight approximately 800 g
Dimensions 244 (including probe connection) x 98 x 59 mm (LxWxH)
Operating temperature -5 to +45 °C
Protection class IP40
Product colour black/orange
Display type 5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply Rechargeable battery, USB mains unit
Authorizations TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
Guarantee Gas sensors (O₂, CO) 24 months; rechargeable battery: 12 months; Thermocouple 12 months
Warranty conditions https://www.testo.com/guarantee
Memory 1,000,000 measuring values
Storage battery type Lithium ion battery
Battery life 10 h
Storage temperature -20 to +50 °C
Charging temperature 0 to +45 °C

Differential Pressure 4 Pa measurement - Piezoresistive
Measuring Range -50 to +50 Pa
Accuracy ±0.3 Pa (< 10 Pa)
±3 % of mv (Remaining Range)
Resolution 0.1 Pa

Flue gas measurement on heating systems

Ideal for measurements involving heating systems:

• high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing

Further areas of application:

• gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*

* Please note: additional probes or accessories are required for these measurements and have to be ordered separately.
