Air flow kit with vane probe - Testo 400

All prices are exclusive of GST

Part No. 0563.0400.72

Ideal kit for IAQ professionals, with a focus on air flow measurement. You will receive the Testo 400 universal IAQ measuring instrument with intuitive measurement menus, one vane probe head (Ø16 mm), one vane probe head (Ø100 mm) and one high-precision humidity/temperature probe head – all three can be attached to the Bluetooth® handle supplied. For measurements at ceiling outlets, simply combine the 100 mm vane probe with the telescope (can be extended up to 1.0 m) and the 90° angle.

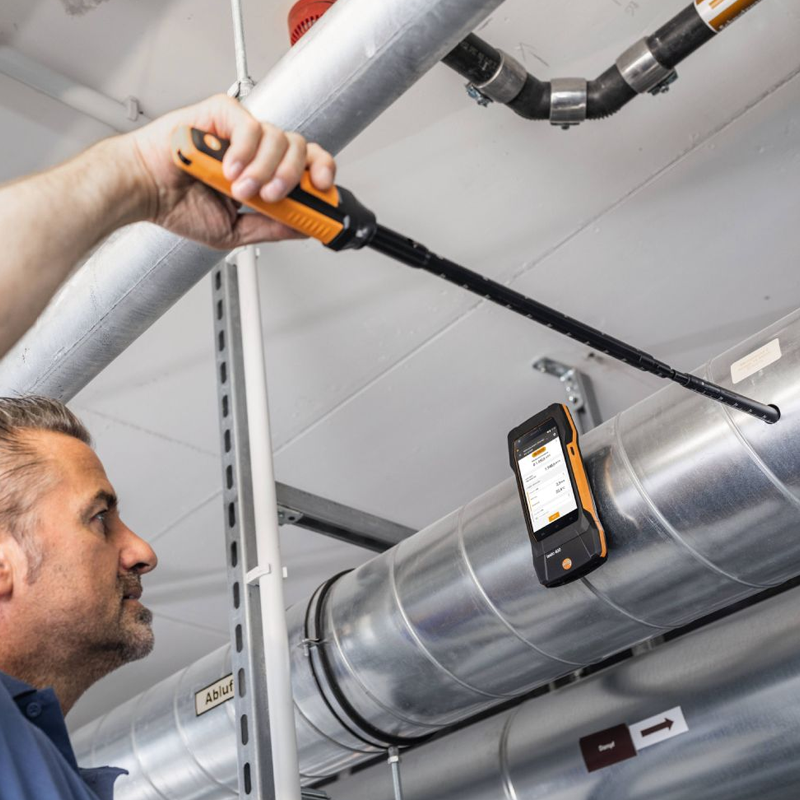

• Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111

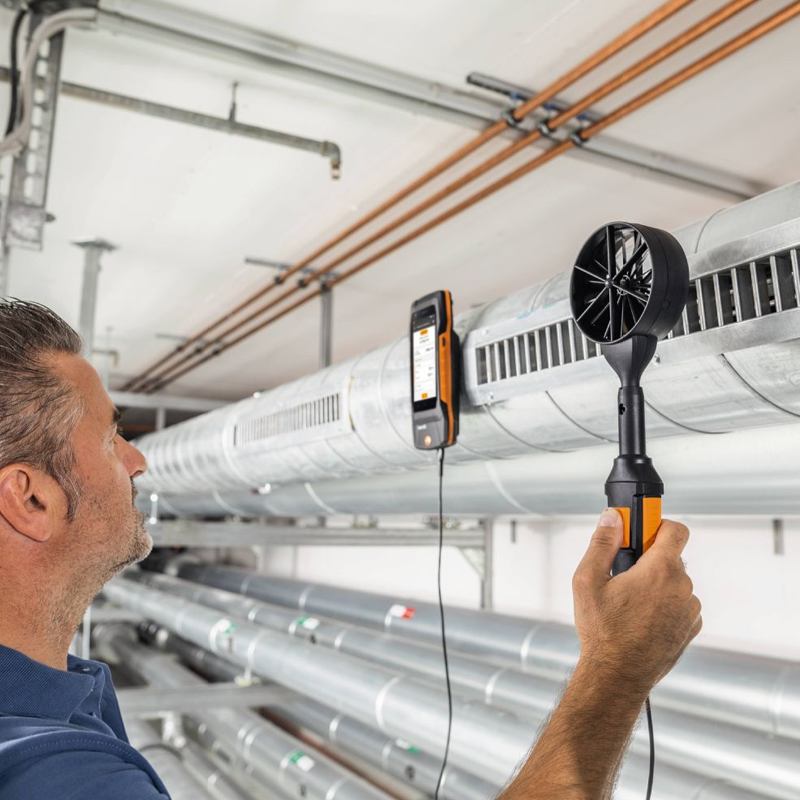

• Determination of the volume flow at outlets by measuring the reference pressure and entering the manufacturer-specific K-factor
• Smart, intuitive measurement programs, complete your measurement with full documentation on site at the customer’s premises or carry out further analysis using the Testo DataControl measurement data management and analysis software

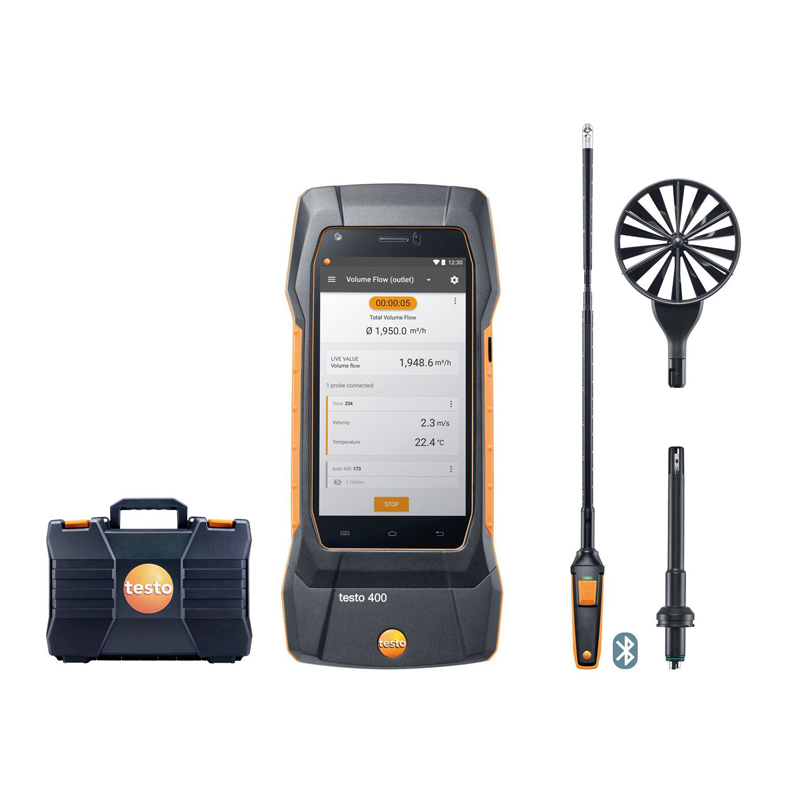

Delivery Scope

• Testo 400 universal IAQ instrument, Testo DataControl software, silicone hoses, mains unit with USB cable, calibration protocol, instruction manual (0560 0400)
• Vane probe with Bluetooth® including temperature sensor (consisting of 16 mm vane probe head, handle adapter and Bluetooth® handle), 4 x AA batteries, telescope (can be extended up to 1.0 m) and calibration protocol (0635 9571)
• Vane probe head (Ø 100 mm) including temperature sensor, bracket for Testovent measurement funnel and calibration protocol (0635 9430)
• High-precision humidity/temperature probe head including calibration protocol (0636 9770)
• Please do not use the probe head in condensing atmospheres. For continuous application in high-humidity ranges
  > 80% RH at ≤ 30 °C for > 12 h
  > 60% RH at > 30 °C for > 12 h
• Please get in touch with Testo Service or contact us via the Testo website
• 90° angle for connecting vane probes (Ø 100 mm) (0554 0991)
• Transport case for air flow measurements (0516 1400)

IAQ measurements in the field of air conditioning and ventilation
High-precision, location-independent and built-in differential pressure sensor, smart and intuitive measurement programs for IAQ measurements in accordance with the standards, creation of documentation on site, e-mailing of reports, versatile combination options with IAQ probes.

IAQ measurements in the field of air conditioning and ventilation
Custom-combine your Testo IAQ measuring instrument with IAQ probes and accessories for your application.

With the right products, you can handle all kinds of IAQ applications:

• Air flow measurements: Flow measurements in ducts, at outlets and on filters as per EN ISO 12599 and ASHRAE 111
• Comfort level measurements: Measurement of indoor air quality or turbulence as per EN ISO 7730 and ASHRAE 55, NET measurement as per DIN 33403, PMV/PPD as per EN ISO 7730 and ASHRAE 55, WBGT measurement as per DIN 33403 and EN ISO 7243
• Measurements in laboratories and cleanrooms: Flow measurements in fume cupboards as per DIN EN 14175-3/-4, differential pressure measurements and laminar flow measurements in cleanrooms, humidity measurements in cleanrooms.
